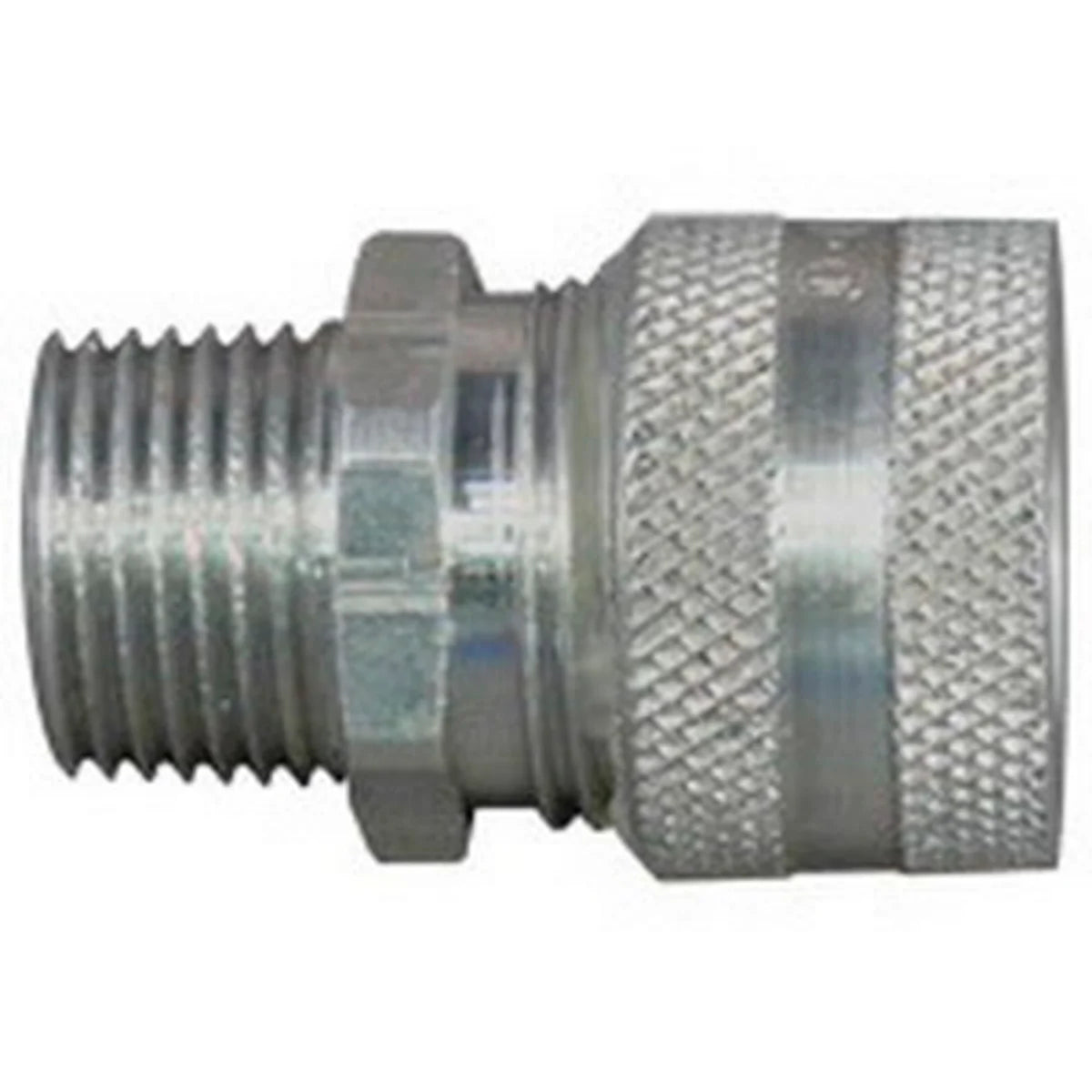

Appleton CG-100100 Straight Liquidtight Strain Relief Cord & Cable Connector 1 Inch 1 - 1.125 Inch Aluminum

Product Description

The Appleton CG-100100 is a straight liquidtight strain relief cord and cable connector designed for use with flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. This connector features a trade size of one inch with compatible cable openings ranging from one inch to one and one-eighth inches. Made from aluminum, this component is suitable for a variety of commercial and industrial applications.

• Threaded hub connection for secure installation
• NEMA 3R rated for wet or dry locations
• Includes neoprene sealing grommet for strain relief

Product Highlights

This connector provides reliable sealing against dust, dirt, oil, and moisture. Its robust design ensures protection for internal wiring connections, particularly in harsh environments.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: CG-100100
• Material: Aluminum
• Conductor Range: 1 - 1-1/8 inches
• Connection Type: Threaded Hub
• NEMA Rating: 3R
• Dimensions: 1-3/4 inches height
• Standards: Class I Division 2, UL 514B, CSA C22.2 No. 18.3
• UPC: 781381192002
