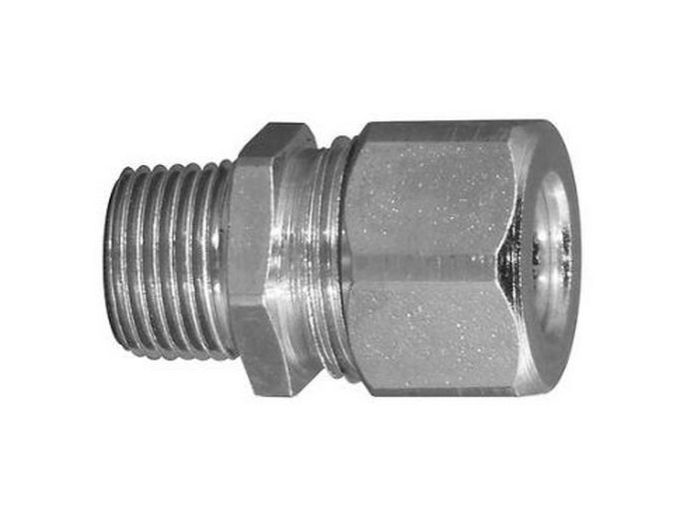

Appleton CG-0625S Cord Connector 1/4 Inch

Product Description

The APPLETON CG-0625S is a liquidtight strain relief cord and cable connector suitable for use in non-hazardous areas. It provides a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. Ideal for wet or dry locations, sealing electrical connections against dust, dirt, oil and water.

• Provides strain relief
• Sealed entry point for the cord
• Steel construction

Product Highlights

This steel cord connector terminates flexible cord into enclosures and junction boxes, providing strain relief and a sealed entry point.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CG-0625S
• Country of Origin: MX

Technical Specifications

• Manufacturer Part Number: CG-0625S
• Manufacturer: Appleton
• Product Series: CG
• Family Series: Appleton Cable Entries Series, CG Series
• Description: Straight Liquidtight Strain Relief Connector, Size: 1/4 IN, Conductor Range: 0.06 - 0.156 IN, Material: Machined Steel, Color: Purple/Pink Label, Nema Rating: NEMA 3R, Connection: Threaded Hub, Dimensions: 3/4 IN Height, Standard: Class I, Division 2,
• Hub Size: 1/4 NPT
• Number of Cables: 1
• Cable Style: Round
• Angle: Straight
• NEMA Rating: NEMA 3R
• Split Frame: No
• Cable Diameter Range: 0.06-0.16 "
• Type: Bushing Grip with Strain Relief
• Composition: Metallic
• Material: Steel
• Hazardous Location: No
• Approvals: CSA, UL
• Application: For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable
• ARRA Compliant: C
• Buy American Compliant: N
• Catalog Number: CG0625S
• Color: Pink/Purple
• Conductor Range: 0.06 - 0.156 IN
• Connection: Threaded Hub
• Connection Type: Threaded Hub
• Country of Origin: MX
• Connection Orientation: Straight
• Dimensions: 3/4 in W
• EU RoHS Indicator: C
• Height: 0.13 in
• Length: 4.80 in
• Series: CG Series
• Size: 1/4 IN in
• Standard: Class I, Division 2, Class II, Division 1 And 2 Class III, CSA C22.2 No. 18.3, 065178
• Standards: ARRA CompliantRoHS CompliantCSA C22.2 No. 18.3CSA 065178UL Listed for Class I, Div 2, Class II, Div 1 and 2, Class III
• Trade Size: 1/4 in
• UNSPSC: 39121431
• UPC 12: 781381515726
• Width: 6.00 in
• Brand: Appleton
• Cable Openings: 0.06 to 0.156 in
• Finish: Natural
• Cable Diameter: 0.06" to 0.16"
• Cable Diameter (mm): 1.52 mm to 3.96 mm
• Grip Type: Bushing Grip With Strain Relief
• Hazardous Rated: No
• Maximum Cable Diameter: 0.156"
• Maximum Cable Diameter (in): 0.156"
• Maximum Cable Diameter (mm): 3.96 mm
• Minimum Cable Diameter: 0.06"
• Minimum Cable Diameter (in): 0.06"
• Minimum Cable Diameter (mm): 1.52 mm
• Cable System: Flexible Cord
• Fitting Type: Connector
• Hazard Rating: Dust-Ignitionproof / Explosionproof
• Hazard Rating Specs: Class I, Division 2, Class II, Division 1, Class III
• Label Color: Purple/Pink
• Specifications Met: Class III, Class II, Div 1 and 2, CSA 065178, CSA C22.2 No. 18.3, UL Listed for Class I, Div 2
• Thread Size: 1/4"
• Thread Standard: NPT
