Appleton C57SA 1 1/2 FM7 Body Type C Alum

Product Description

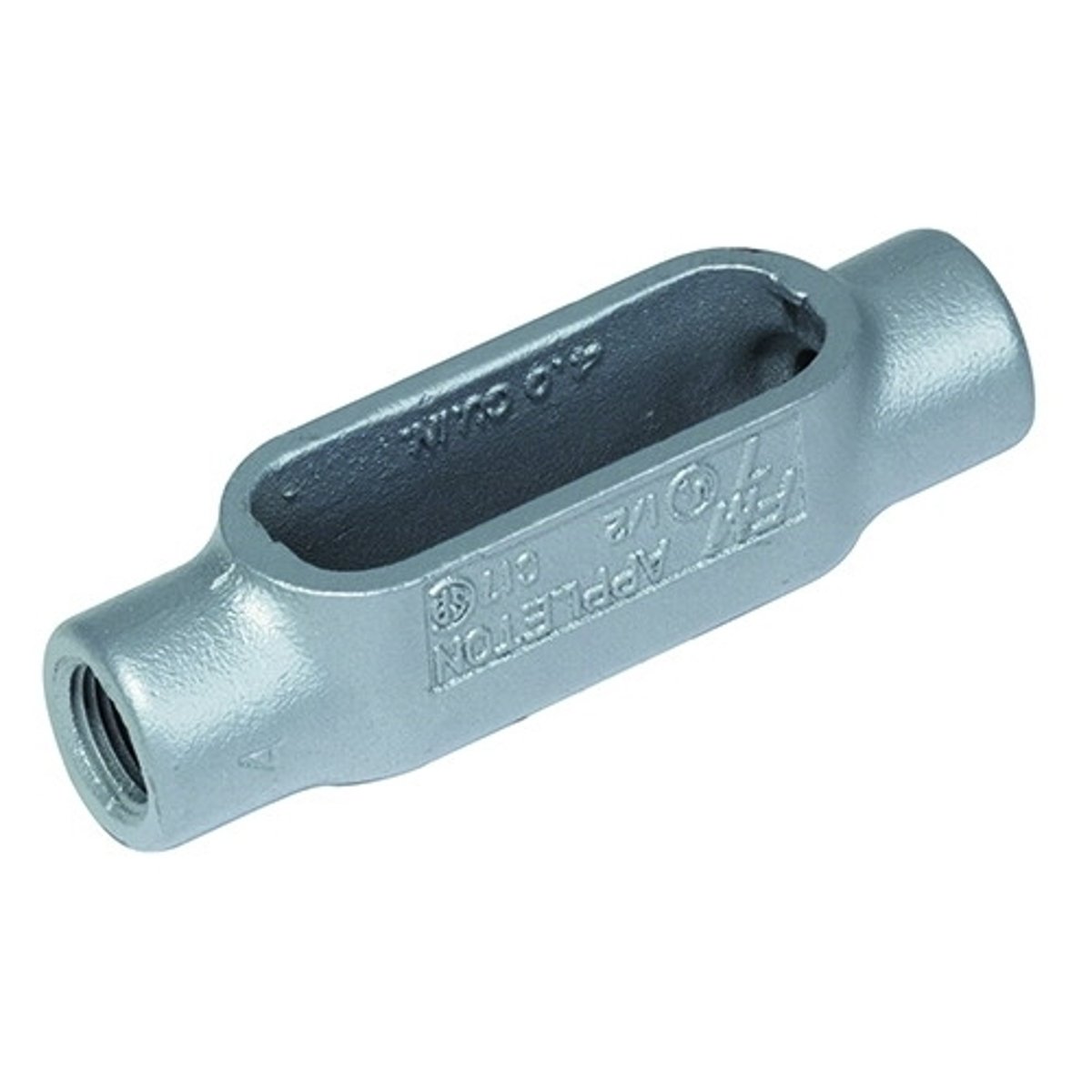

The Appleton C57SA is a Type C conduit outlet body made of aluminum. It has a hub size of one and a half inches and follows the FM7 design. The dimensions are eight point one nine inches in length, two point four four inches in width, and two point five six inches in height. This product features an epoxy powder coat finish and is designed for tapered female threaded connections. It meets the UL 514A and UL 514B standards.

• Hub size: one and a half inches
• Material: aluminum with an epoxy powder coat finish
• Connection type: tapered female threaded

Product Highlights

This conduit outlet body is ideal for electrical installations where a robust and durable connection is required. It serves various functions, including wire pulling and splicing, making it essential for use in rigid conduit systems.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Catalog Number: C57SA

Technical Specifications

• Material: Aluminum
• Finish: Epoxy Powder Coat
• Hub Size: 1-1/2 inches
• Length: 8.19 inches
• Width: 2.44 inches
• Height: 2.56 inches
• Connection: Tapered Female Threaded
• Standards: UL 514A, UL 514B, UL File E2527
• Application: For Use With Rigid Steel and Aluminum Conduit and IMC
• Special Features: Allows bending in conduit systems, provides access for maintenance, and ensures strong connections
• Country of Origin: Mexico
