Appleton C47SA 1 1/4 Fm7 Body Type C -Al

Product Description

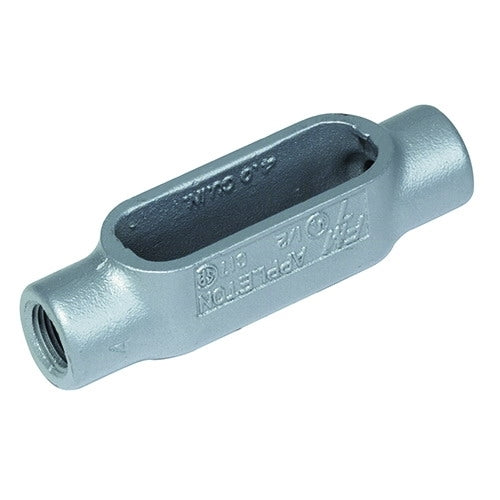

The APPLETON C47SA is a FM7 UNILETS Type C Conduit Outlet Body with a hub size of 1-1/4 IN. Constructed from aluminum with an epoxy powder coat finish, it features a tapered female threaded connection. It is designed for use with rigid steel, rigid aluminum conduit, and IMC. It can serve as a pulling fitting, make bends in conduit system, provide openings for splicing, connect and change direction of conduit run, allow connections for branch run, permit access to conductors for maintenance.

• Hub Size: 1-1/4 IN
• Constructed from aluminum with an epoxy powder coat finish
• Connection: Tapered Female Threaded

Product Highlights

The APPLETON C47SA conduit outlet body is suitable for use with rigid steel, rigid aluminum conduit, and IMC.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: C47SA

Technical Specifications

• Type: Type C Conduit Outlet Body
• Brand: Appleton
• Width: 2.19 in
• Finish: Powder Coated
• Height: 2.31 Inch
• Length: 7.44 Inch
• Hub Size: 1.25 in
• Material: Aluminum
• Sub Brand: UNILETS
• Product UPC: 78138160062
• 12-Digit UPC: 781381600620
• Applications: For Use With Rigid Steel, Rigid Aluminum Conduit And IMC
• TC Connection: Tapered Female Threaded
• Configuration: C
• Cover Type: Epoxy Powder Coated Copper Free Cast Aluminum
• Hub Location: Straight
• Number of Hubs: 2
• Installation: Threaded
• Form Type: Form 7
• Approval: UL 514A/514B, CSA C22.2, NEC, CEC
• Used On: Rigid Conduit/IMC
• Applicable Standard: NEMA FB-1
• Capacity: 20 Cu Inch
