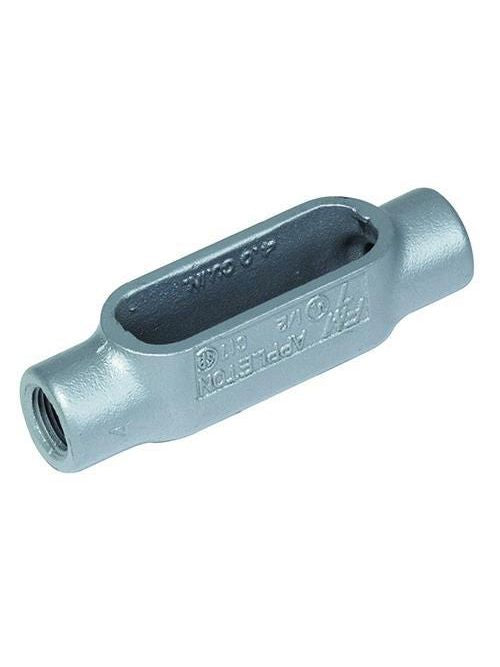

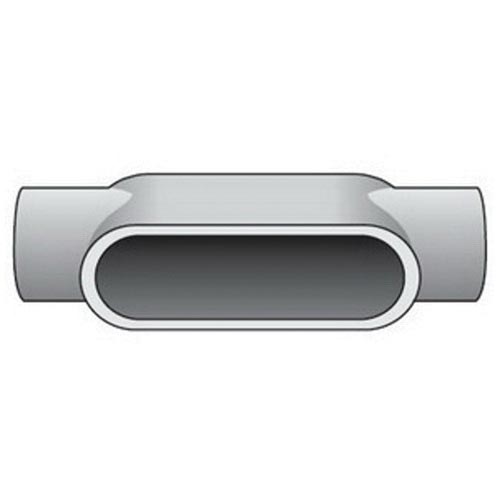

Appleton C47 Conduit Outlet Body Type C 1-1/4 inch Hub Form 7

Product Description

The Appleton C47 is a Type C conduit outlet body designed for junctions in electrical systems. With a hub size of one and one-quarter inches, this outlet body is suitable for use in both residential and commercial applications.

• Ideal for use with rigid steel and aluminum conduit
• Durable Grayloy iron construction
• Triple-coat finish for corrosion resistance

Product Highlights

This product features a flat back design, providing greater wiring capacity and making it easy for surface mountings.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Form: 7
• Type: Type C Conduit Outlet Body
• Color: Gray
• Material: Grayloy Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder Coat)
• Hub Size: 1-1/4 inches
• Dimensions: 7.44 inches (Length) x 2.19 inches (Width) x 2.31 inches (Height)
• Capacity: 20 cubic inches
• Connection Type: Tapered Female Threaded
• Applications: For use with rigid steel, rigid aluminum conduit, and IMC
• Country of Origin: Mexico
• Mounting Type: Surface
• Number of Hubs: 2
• Manufacturing Standards: UL 514A, UL 514B, CSA C22.2 No. 18.3
