Appleton C400-M 4 inches Form 35 Unilet

Product Description

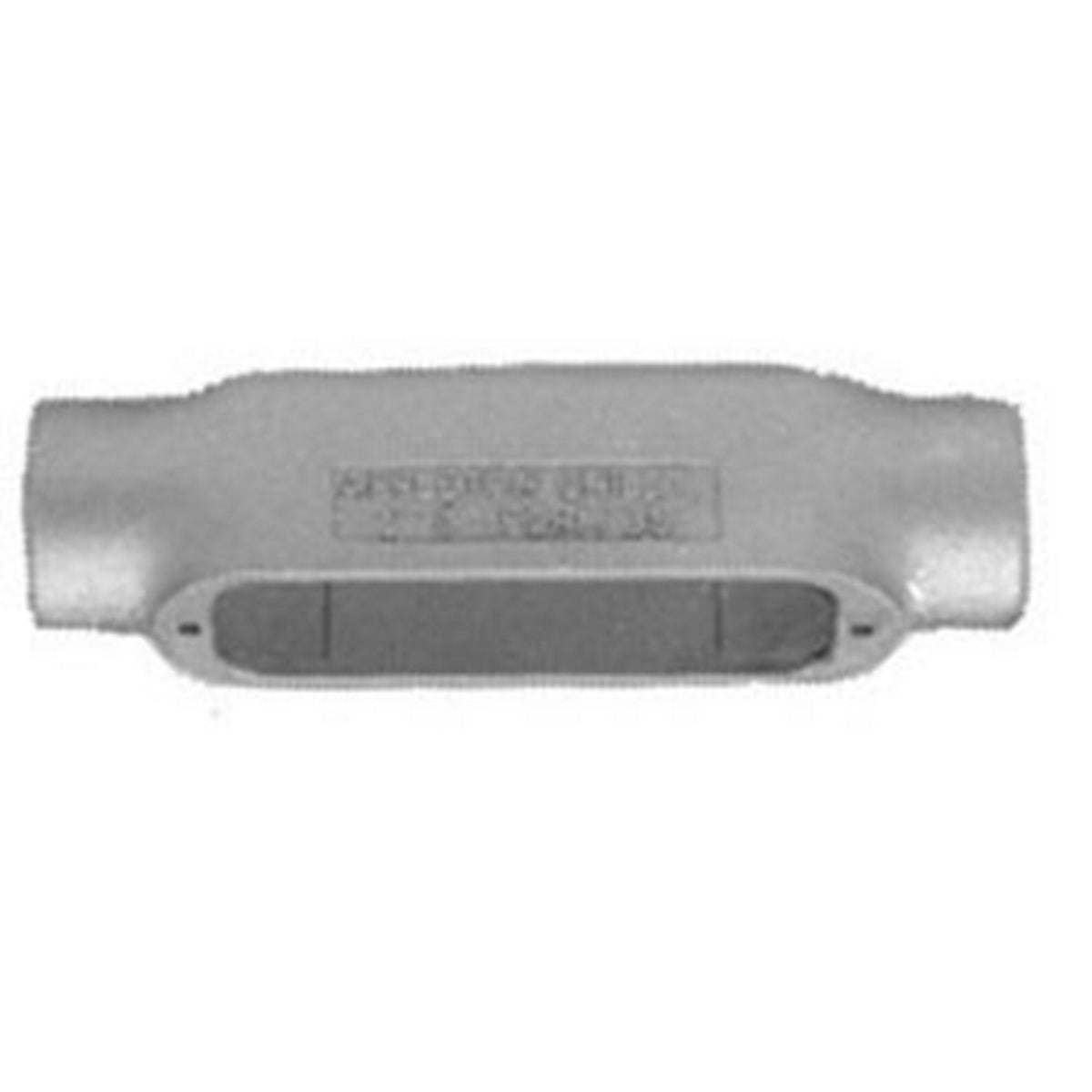

The Appleton C400-M 4" Form 35 UNILETS Type C Conduit Outlet Body is constructed from malleable iron with a triple-coat finish. It is designed for use with rigid steel, rigid aluminum conduit, and IMC. This conduit outlet body serves as a pulling fitting and permits access to conductors for splicing and maintenance.

• Form 35
• Hub Size: 4 IN
• Material: Malleable Iron

Product Highlights

The Appleton C400-M is ideal for connecting and changing the direction of conduit runs, making bends, and allowing connections for branch runs.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: C400-M
• Country of Origin: Mexico

Technical Specifications

• Type: Type C Conduit Outlet Body
• Brand: Appleton
• Width: 5.5 in
• Finish: Zinc Electroplate/Chromate/Epoxy Powder Coat
• Height: 5.56 in
• Length: 18.13 in
• Hub Size: 4 in
• Material: Malleable Iron
• Form Type: 35
• Sub Brand: UNILETS
• Trade Size: 4 "
• Applications: For Use With Rigid Steel, Rigid Aluminum Conduit And IMC
• TC Connection: Tapered Female Threaded
• Catalog Number: C400-M
• Manufacturer: Appleton Electric
• Country of Origin: Mexico
• Made in USA: No
• Application: For Use With Rigid Steel, Rigid Aluminum Conduit And IMC
• Connection: Tapered Female Threaded
• Form: 35
• Special Features: Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; High tensile strength and ductility, high corrosion resistance, high impact and shock resistance; Sizes with flat-back design ideal where fitting is mounted flat against surface; Exclusive built-in easy-pulling rollers to facilitate cable pulling through hubs and help eliminate cable damage; Wiring capacity: 340 CU-IN as per NEC 314.16(A)
• Standard: UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
• UPC: 781381165952
• GTIN: 00781381165952
• Item Type: Type C Conduit Outlet Body
• Configuration: C
• Cover Type: Electro Zinc Plated Dichromate Epoxy Powder Coated Malleable Iron
• Hub Location: Straight
• Number of Hubs: 2
• Installation: Threaded
• Approval: UL 514A/514B, CSA C22.2, NEC, CEC
• Used On: Rigid Conduit/IMC
• Applicable Standard: NEMA FB-1
• Capacity: 340 cu-in
• Dimensions: 18.13 in L x 5.5 in W x 5.56 in H
• UNSPSC: 39131708
• Diameter: 4 in
• Product Series: Form 35 Malleable Iron
• Family Series: Appleton Conduit Outlet Bodies, Form 35 Malleable Iron Series
• Style: Threaded Iron
• Shape: C
• Cover Included: No
• Gasket Included: No
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Connection Type: Threaded
• Composition: Malleable Iron
• Hazardous Location: Yes
• Approvals: CSA, UL
• Item model number: C400M
