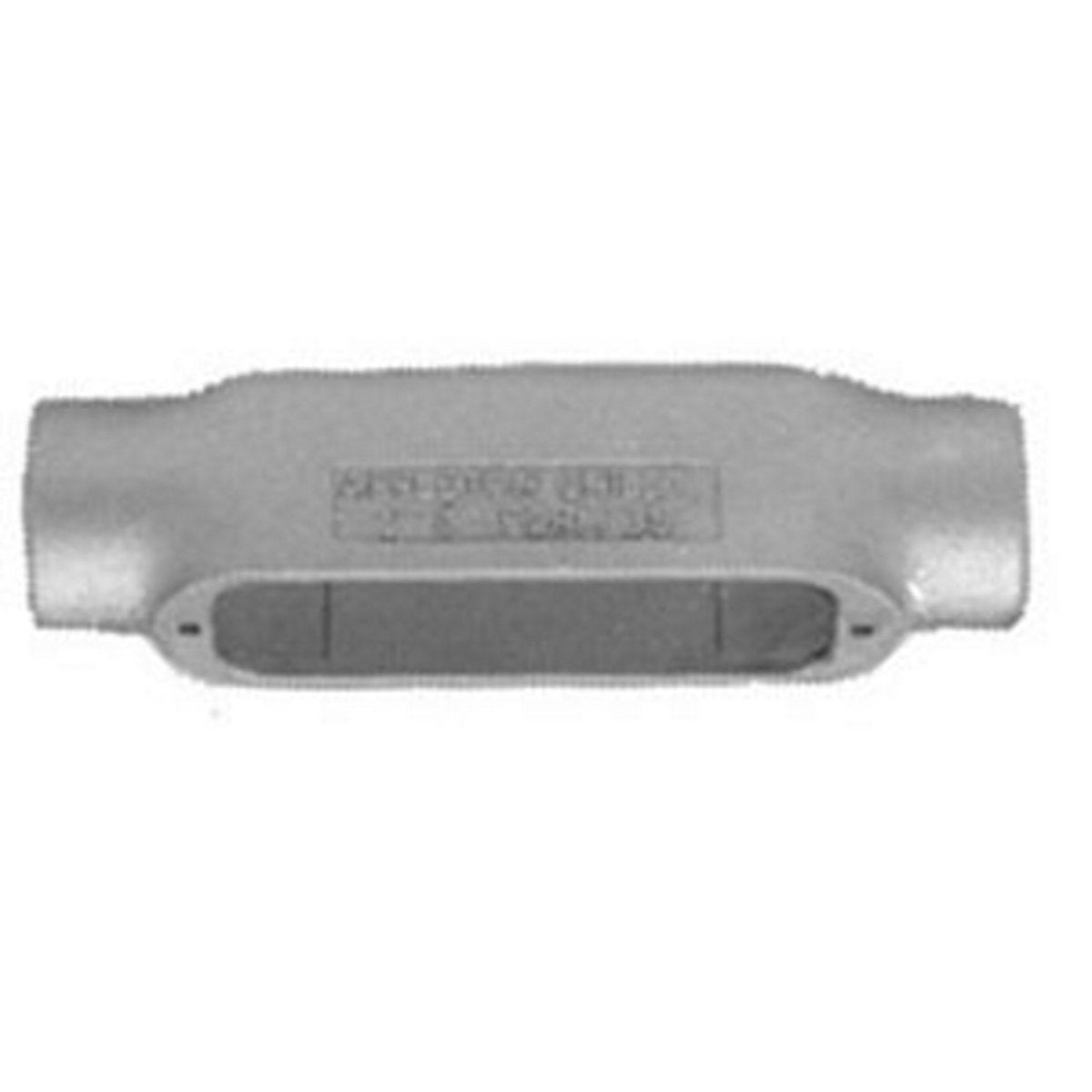

Appleton C300-M 3 Malleable C-Type Conduit Body

Product Description

Appleton C300-M is a three-inch malleable C-type conduit body made from durable materials. This model is designed for use with rigid steel, rigid aluminum conduit, and intermediate metal conduit (IMC). With a length of fifteen point one three inches, width of four point six three inches, and height of four point six three inches, it is suited for various electrical applications.

• Hub Size: three inches
• Connection Type: tapered female threaded
• Installation Method: threaded

Product Highlights

This conduit body is perfect for providing transitions and junction points in conduit systems. The built-in features facilitate easy cable pulling and maintenance while ensuring the integrity of connections.

Product Information

Standard Information

• Catalog Number: C300-M
• Manufacturer: Appleton Electric

Technical Specifications

• Material: malleable iron
• Finish: triple-coat (zinc electroplate, chromate and epoxy powder coat)
• Application: for use with rigid steel, rigid aluminum conduit and IMC
• Special Features: serves as pulling fittings, provides openings for splicing, smooth integral bushings
• Approval Standards: UL 514A, UL 514B, CSA C22.2
• Country of Origin: Mexico
• Number of Hubs: two
• Hub Location: straight
• Access Opening: side
