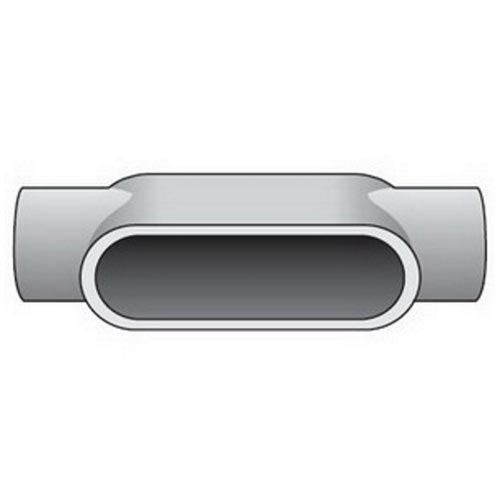

Appleton C27 Type C Conduit Outlet Body, 3/4 in Hub, Form 7, 6.9 cu-in Capacity

Product Description

The Appleton C27 Type C Conduit Outlet Body is designed for heavy-duty electrical applications. It features a three-fourth inch hub and has a capacity of six point nine cubic inches. This product is made from grayloy iron and comes with an aluminum enamel and zinc electroplated finish.

• Flat back design for greater wiring capacity
• Compatible with other manufacturers Form 7 conduit bodies
• Suitable for wet locations with gasketed covers

Product Highlights

Use this conduit outlet body for efficient wiring in both rigid and intermediate metal conduit systems.

Product Information

Standard Information

• Brand: Appleton
• MPN: C27

Technical Specifications

• Application: Rigid/IMC Conduit Applications
• Capacity: 6.9 cu-in
• Color: Gray
• Connection Type: Tapered FNPT
• Country of Origin: MX
• Dimensions: 6 in L x 1-9/16 in W x 1-5/8 in H
• Enclosure: NEMA FB-1/FB-2.10
• Finish: Aluminum Enamel/Zinc Electroplated
• Form: Form 7
• Hub Size: 3/4 in
• Material: Grayloy Iron
• Mfg Standards/Approvals: ARRA Compliant|UL 514A|C22.2|Federal Specification A-A-50563
• Mounting Type: Surface
• Number of Hubs: 2
• Package Height: 0.82 in
• Package Length: 6.9 in
• Package Weight: 1.34 lb
• Package Width: 5.1 in
• Type: Type C
