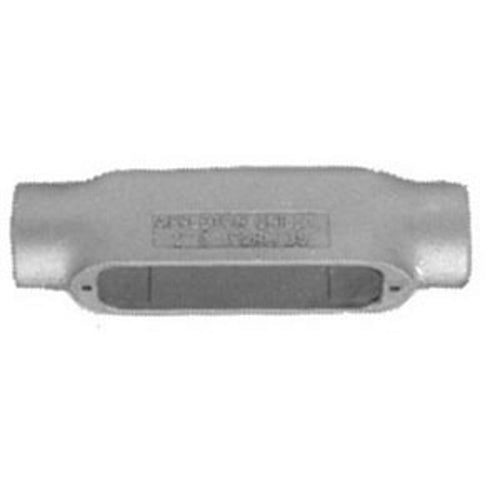

Appleton C250-M Conduit Outlet Body 2-1/2 in Hub Form 35

Product Description

The Appleton C250-M Conduit Outlet Body connects and directs conduit runs. It is designed for rigid steel, aluminum, and IMC conduit applications. This type C conduit body features two hubs, allowing for easy access to conductors for maintenance and splicing.

• Hub Size: 2-1/2 inches
• Material: Malleable Iron with triple coating
• Wiring Capacity: 143 cu-in

Product Highlights

The Appleton C250-M is a form 35 conduit outlet body suitable for various electrical applications.

Product Information

Standard Information

• Type: Type C
• Application: For use with rigid steel and aluminum conduit

Technical Specifications

• Dimensions: 15.13 inches L x 4.31 inches W x 3.88 inches H
• Finish: Triple-Coated (Zinc Electroplate, Chromate, and Epoxy Powder Coat)
• Connection Type: Tapered FNPT
• Form: 35
• Hub Size: 2-1/2 inches
• Capacity: 143 cu-in
• Material: Malleable Iron
• Enclosure: NEMA FB-1
• Number of Hubs: 2
