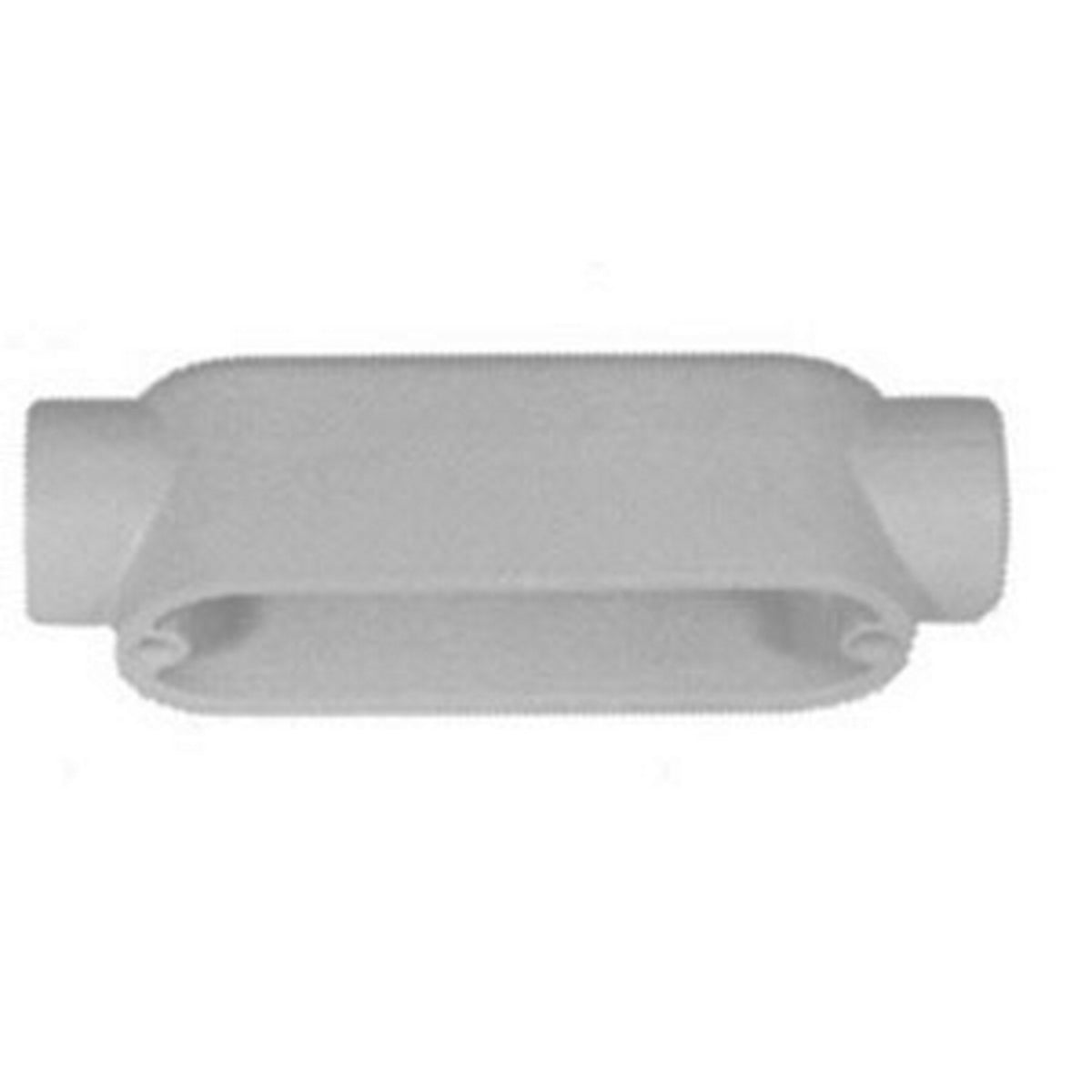

Appleton C250-A Unilet Type C Conduit Outlet Body 2-1/2 Inch

Product Description

The APPLETON C250-A Unilet Type C Conduit Outlet Body with a 2-1/2 inch hub is for use with rigid steel, rigid aluminum conduit, IMC, and EMT. It features tapered female threaded connections and an epoxy powder coat finish. It conforms to UL 514A, UL 514B, CSA C22.2 No. 18.3, CSA 065183, and NEMA FB-1 standards.

• Serves as pulling fittings
• Makes bends in conduit systems
• Provides openings for splicing

Product Highlights

The conduit body allows connections for branch runs and permits access to conductors for maintenance.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: C250-A
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: C250-A
• Manufacturer: Appleton Electric
• Brand: Appleton
• Sub Brand: UNILETS
• Country of Origin: Mexico
• Made in USA: No
• Application: For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT
• Connection: Tapered Female Threaded
• Finish: Epoxy Powder Coat
• Form: 85
• Hub Size: 2-1/2 IN
• Material: Sand Cast Aluminum
• Standard: UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
• UPC: 781381103480
• GTIN: 00781381103480
• Item Type: Type C Conduit Outlet Body
• Length: 15.13 Inch
• Width: 4.31 Inch
• Height: 3.88 Inch
• Number of Hubs: 2
• Connection Type: Tapered FNPT
• Enclosure: NEMA FB-1
• Type: Type C Conduit Outlet Body
• Standard & Approvals: UL 514A/514B/E2527, CSA C22.2 No. 18.3, CSA 065183
• Mounting Type: Flat
• Capacity: 143 cu-in
• Product UPC: 78138110348
• Series: UNILETS Type C
• UL Listed: UL Listed
• Corrosion Resistant: Corrosion Resistant
• Indoor/Outdoor Use: Indoor/Outdoor Use
• Meets Industry Standards: Meets Industry Standards
