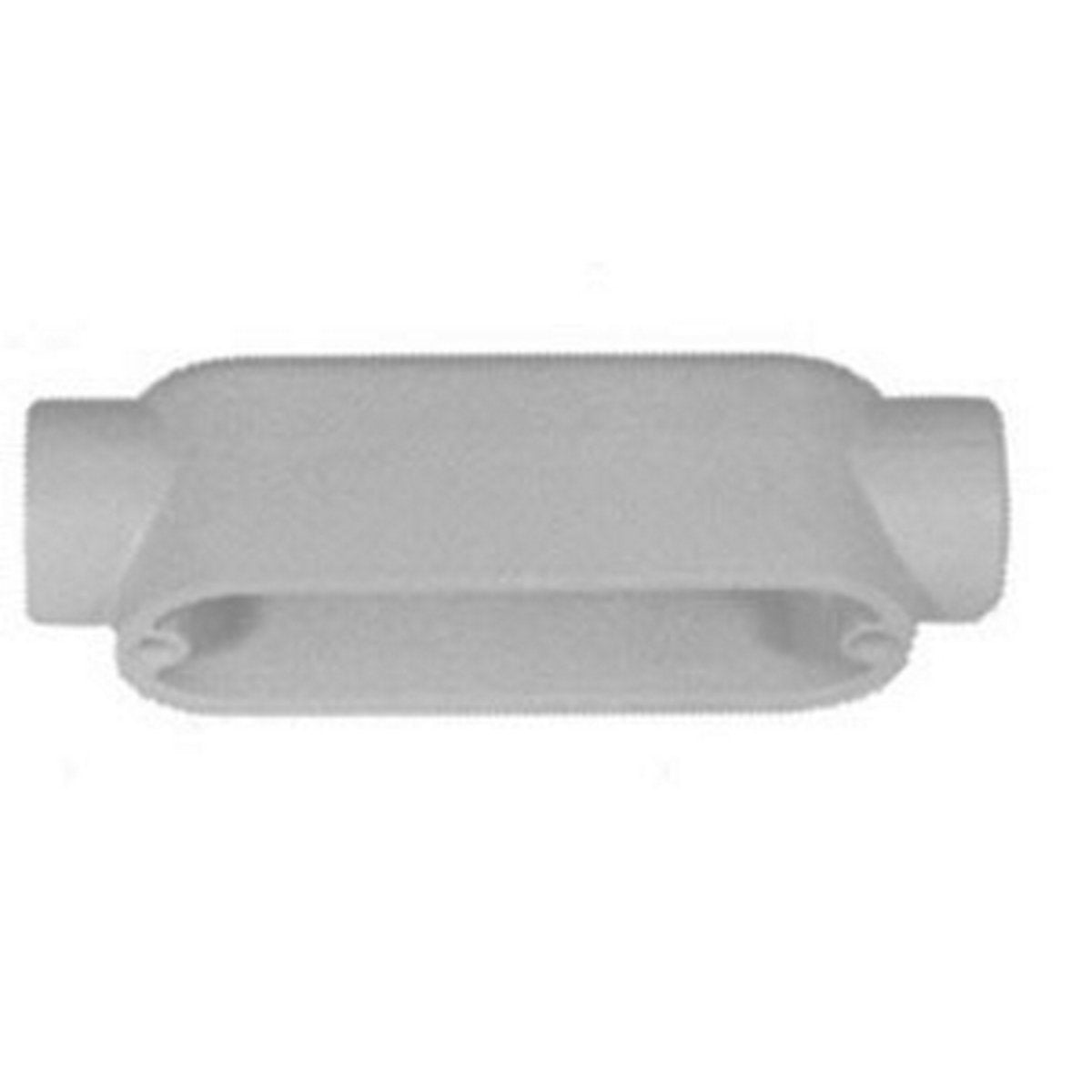

Appleton C150-A 1-1/2 Aluminum C-Type Conduit Body

Product Description

The Appleton C150-A is a 1-1/2 inch aluminum C-type conduit body designed for conduit systems. This component features a hub size of one and a half inches and measures eight point five six inches in length, two and a half inches in width, and two and three fourths inches in height. It is built from pressure cast aluminum with an epoxy powder coat finish, ensuring durability and resistance to corrosive elements. The connection type is tapered female threaded, allowing for secure installation in various electrical fittings.

• Hub Size: 1-1/2 inches
• Material: Pressure cast aluminum
• Approval Standards: UL 514A, UL 514B

Product Highlights

This conduit body serves multiple purposes such as pulling fittings, making bends in conduit systems, and providing access for splicing. It allows connections for branch runs and maintains effective conductor insulation through its smooth internal design.

Product Information

Standard Information

• Brand: Appleton Electric
• Catalog Number: C150-A

Technical Specifications

• Length: 8.56 inches
• Width: 2.5 inches
• Height: 2.75 inches
• Material: Pressure cast aluminum
• Finish: Epoxy powder coat
• Connection Type: Tapered female threaded
• Application: For use with rigid steel and aluminum conduit, IMC and EMT
• Special Features: Allows branch run connections, provides maintenance access, rain-tight design when used with casketed covers
