Product Description

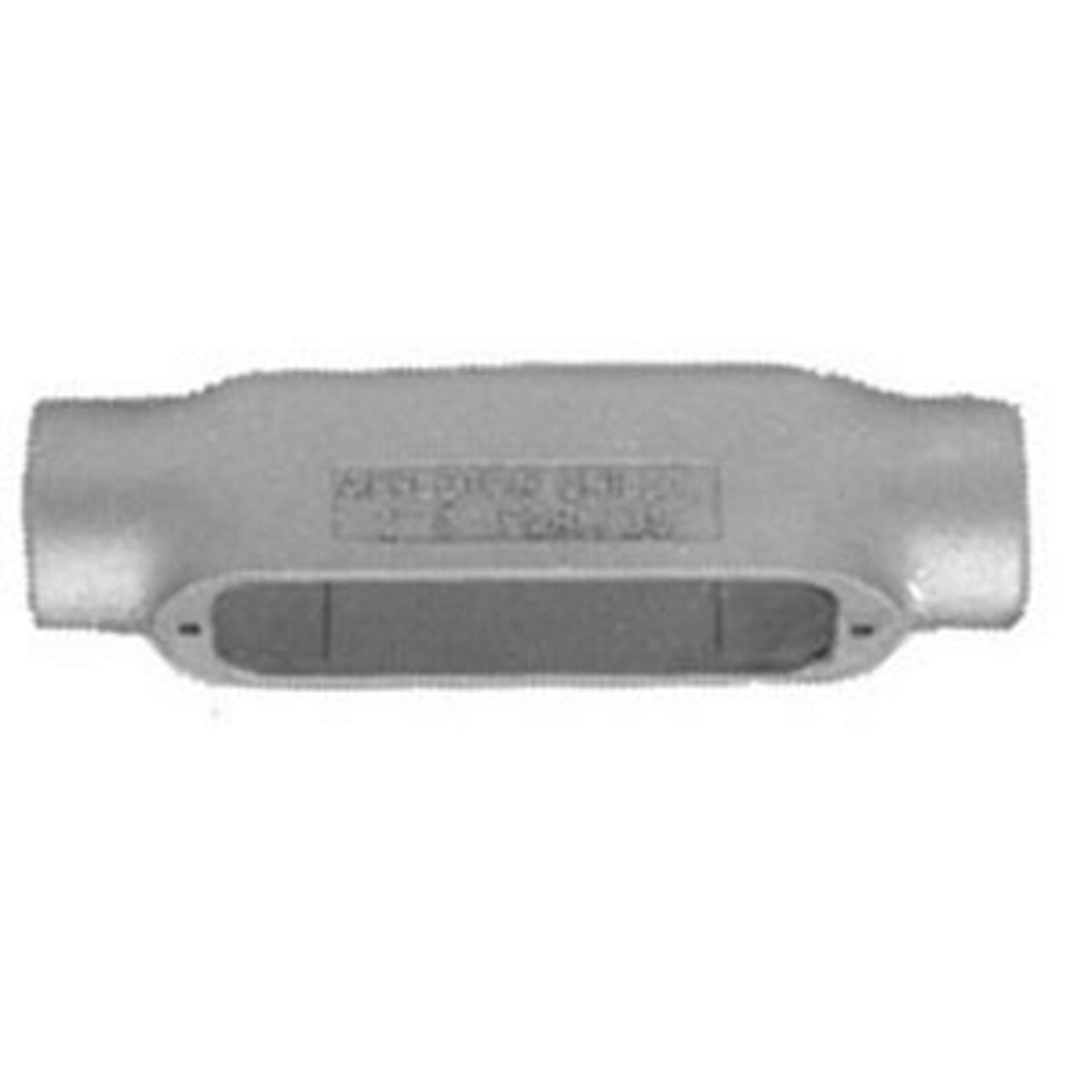

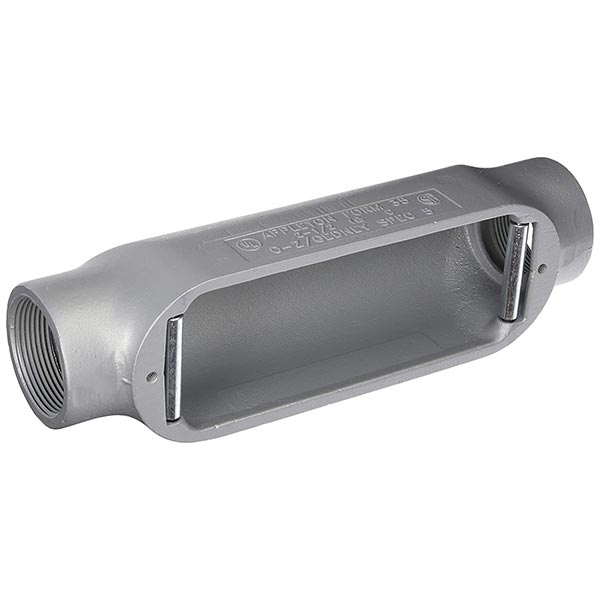

The Appleton C125-M is a 1-1/4 inch Malleable C-Type Conduit Body, designed for rigid steel and aluminum conduits. The product features a triple-coat finish of zinc electroplate, chromate, and epoxy powder coat that enhances its durability. The connection type is tapered female threaded, ensuring a secure fit. This conduit body measures nine point one nine inches in length, two and a half inches in width, and two point five six inches in height.
- Hub size: 1-1/4 inches
- Material: Malleable iron
- Application: Suitable for use with Rigid Steel, Rigid Aluminum Conduit, and IMC
Product Highlights
This conduit body allows effective routing and connection of electrical conduits, providing accessibility for maintenance and splicing connections.
Product Information
Standard Information
-
Brand: Appleton
-
MPN: C125-M
Technical Specifications
-
Length: 9.19 inches
-
Width: 2.5 inches
-
Height: 2.56 inches
-
Hub Size: 1-1/4 inches
-
Material: Malleable Iron
-
Finish: Triple-Coat (Zinc Electroplate, Chromate and Epoxy Powder Coat)
-
Connection: Tapered Female Threaded
-
Form: 35
-
Catalog Number: C125-M
-
UPC: 781381165105
-
Country of Origin: Mexico
-
Capacity: 35 cubic inches
-
Standards: UL 514A, UL 514B, CSA C22.2 No. 18.3
