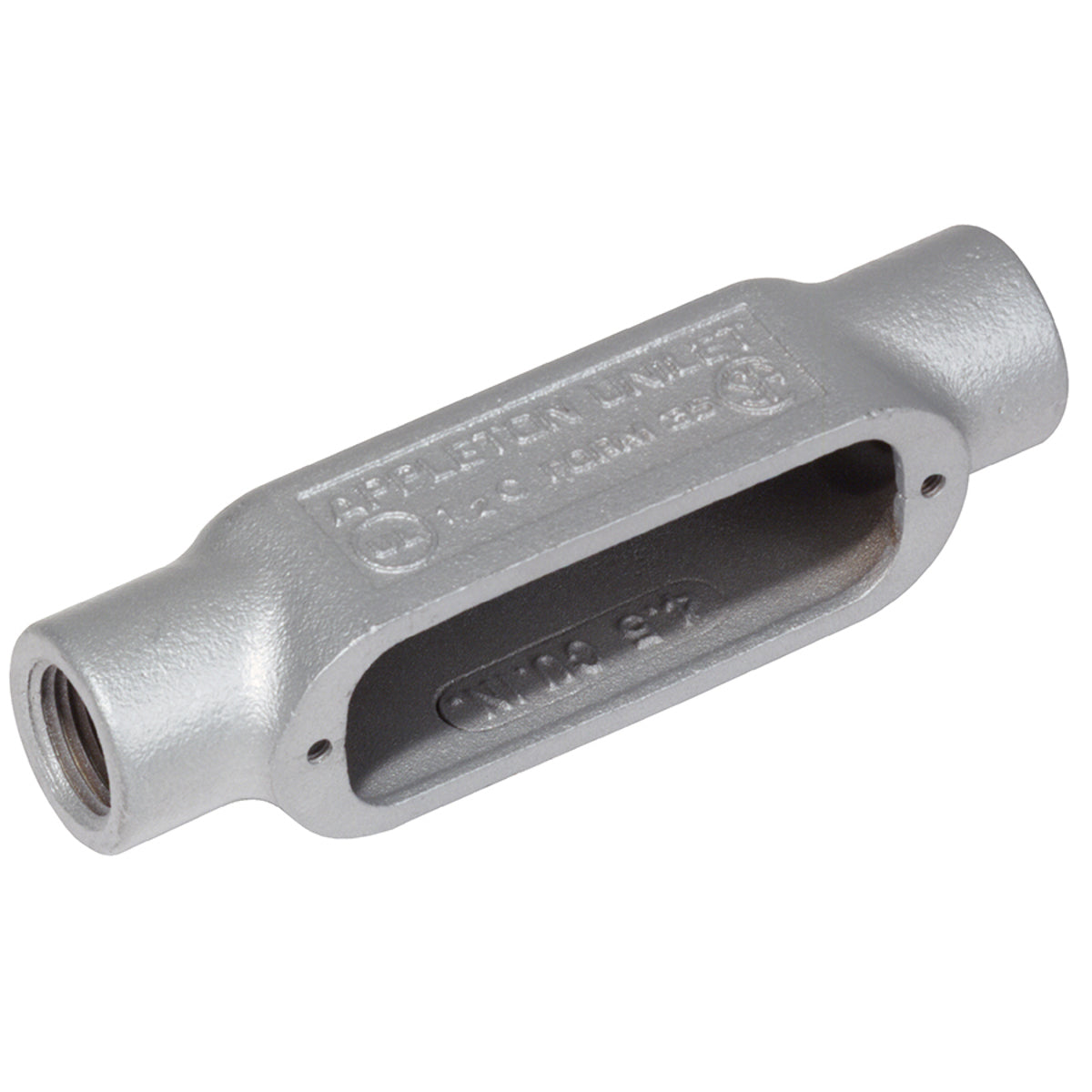

Appleton C100-M Type C Conduit Body, 1 Inch, Malleable Iron, Triple-Coat (Zinc Electroplate/Chromate/Epoxy Powder Coat)

Product Description

The Appleton C100-M is a Type C Conduit Body designed for 1-inch conduit installation. Constructed from malleable iron and featuring a triple-coat finish of zinc electroplate, chromate, and epoxy powder, it offers durability and corrosion resistance. This conduit body is suitable for use with rigid steel, rigid aluminum conduit, and IMC.

• Hub size: 1 inch
• Application: For use with rigid steel, rigid aluminum conduit, and IMC
• Connection type: Tapered female threaded

Product Highlights

This product provides access to conductors for maintenance, allows changes in direction of conduit runs, and has a wiring capacity of twelve point five cubic inches according to NEC 314.16(A).

Product Information

Standard Information

• UPC: 781381164856
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: C100-M
• Material: Malleable Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder Coat)
• Form Type: 35
• Length: 7.13 inches
• Width: 1.81 inches
• Height: 1.94 inches
• Country of Origin: Mexico
• Special Features: High tensile strength and ductility, excellent for making bends, provides openings for splicing, and smooth, rounded bushings to protect conductor insulation.
