Appleton C100-A 1 Form 85 Unilet 1 IN Aluminum Conduit Body

Product Description

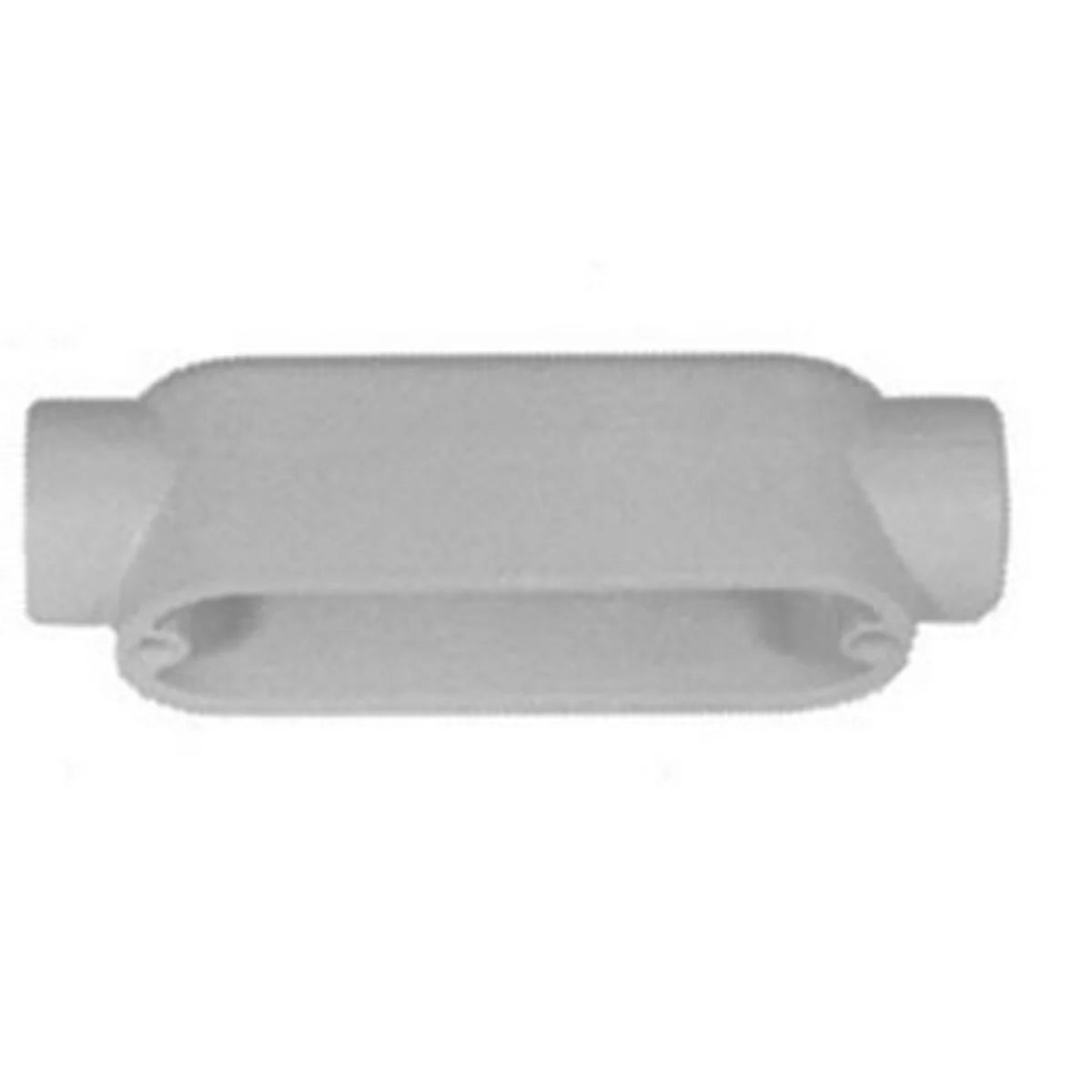

The Appleton C100-A is a form 85 unilet type C conduit outlet body made from pressure cast aluminum. It measures six point six nine inches in length, one point eight one inches in width, and one point eight eight inches in height. The hub size is one inch and features a tapered female threaded connection. This conduit body is suitable for use with rigid steel, rigid aluminum conduits, intermediate metal conduit (IMC), and electrical metallic tubing (EMT).

• Hub Size: 1 inch
• Material: Pressure Cast Aluminum
• Connection: Tapered Female Threaded

Product Highlights

This product serves as a pulling fitting and facilitates bending in conduit systems. It allows for splicing and provides access to conductors for maintenance.

Product Information

Standard Information

• Catalog Number: C100-A
• Manufacturer: Appleton Electric

Technical Specifications

• Material: Pressure Cast Aluminum
• Finish: Epoxy Powder Coat
• Width: 1.81 inches
• Height: 1.88 inches
• Length: 6.69 inches
• Application: Suitable for Rigid Steel and Aluminum Conduit, IMC, EMT
• Standards: UL 514A, UL 514B, CSA C22.2 No. 18.3
• Special Features: Lightweight, high corrosion resistance, room for wiring, allows branch connections
