Appleton C-1501-R 2 Screw Connector Round Service Entrance Cable 1-1/2 Inch

Product Description

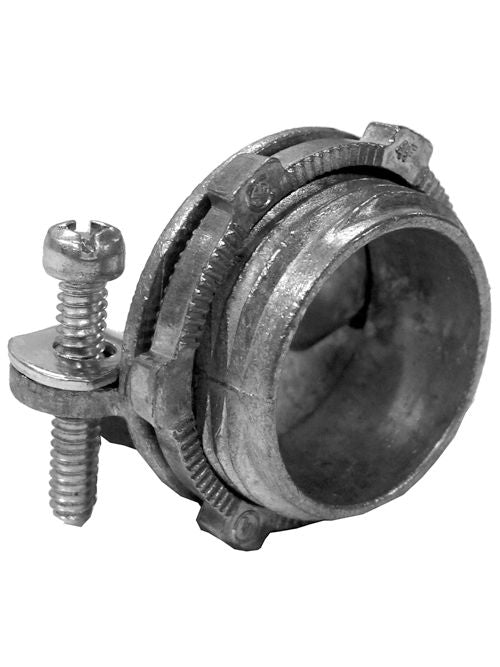

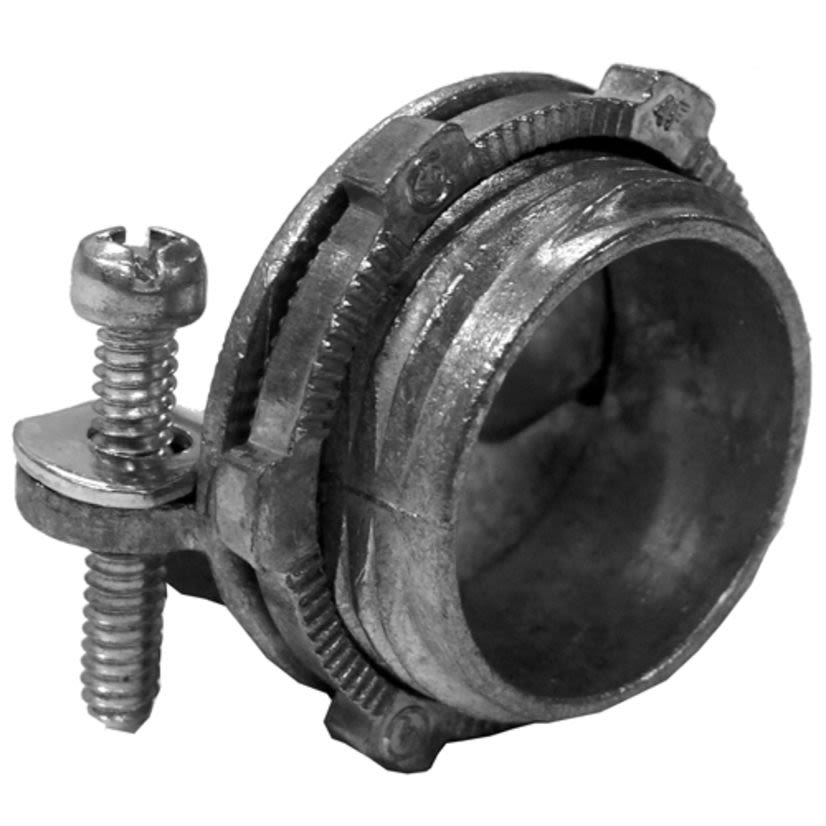

The APPLETON C-1501-R 2 Screw Connector terminates round type SE or type USE cable to a knockout in dry location box or enclosure. Designed for round service entrance cables, it features die-cast zinc construction with NPS male hub threads. The connector includes a steel/zinc-plated clamp and locknut for secure installation. It is suitable for 3-2/0 AWG and 3-3/0 AWG conductors.

• 2.06IN Dia X 1.44IN Length
• For 3-2/0, 3-3/0 AWG Round Service Entrance Cable
• With Clamp

Product Highlights

The connector is UL listed, CSA certified and meets NEMA standards. It is furnished with locknut and has male hub threads - NPS.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: C-1501-R
• Country of Origin: India

Technical Specifications

• Size: 1.5 IN
• Type: 2 Screw Connector
• Brand: Appleton
• Material: Die Cast Zinc
• Sub Brand: NEER
• Trade Size: 1-1/2 Inch
• Manufacturer Part Number: C-1501-R
• Manufacturer Name: Appleton
• Conductor Size: 3-2/0 AWG, 3-3/0 AWG
• Item Name: Connector
• Standards: UL 514B, E25015 Listed, CSA C22.2 No.18.3, 208044 Certified, NEMA FB-1 Standard
• Suitable For Use With: Round Service Entrance Cable
• Application: To terminate oval type se or type use cable to a knockout in dry location box or enclosure
• Standard & Approvals: UL 514B Listed, E25015, CSA C22.2 No 18.3, 208044, NEMA FB-1, RoHS Complaint
• Knockout Size: 1-1/2 in
• Conductor size: 3 to 2/0 AWG
• Package Type: EACH
• Type / Style: 2-Screw
• RoHS Compliant: RoHS Compliant
• UL 514B: UL 514B
• UL File No.: E25015
• CSA C22.2 No. 18.3: CSA C22.2 No. 18.3
• CSA: 208044
• Energy Star Flag: No
