Appleton BUB400-M 4 Mogul Unilet Type U

Product Description

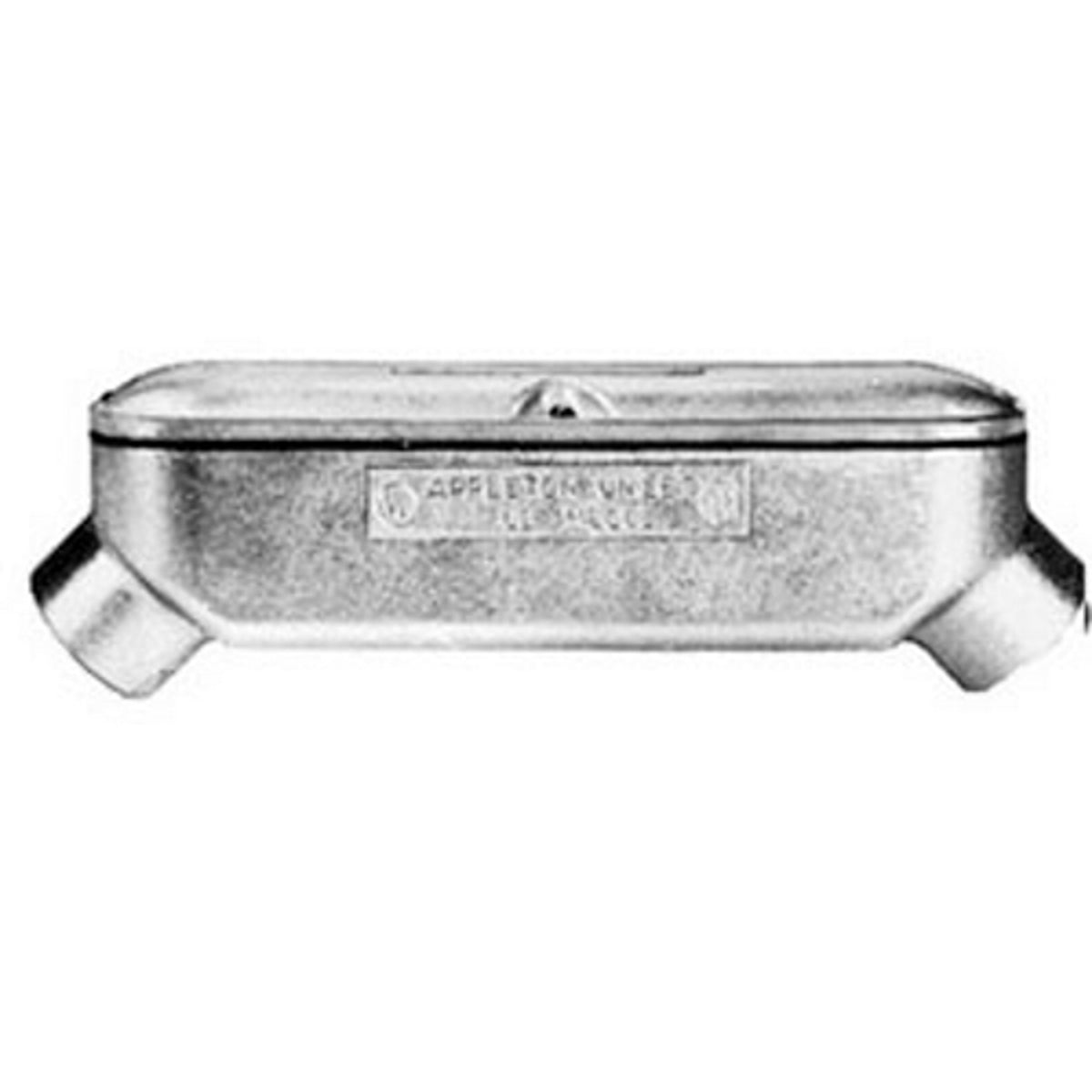

The Appleton BUB400-M is a four-inch Mogul Unilet type U conduit outlet body. It is made of malleable iron, designed for use with rigid metal conduit and intermediate metal conduit (IMC). This conduit outlet body comes with an assembled cover and gasket, offering a reliable and durable solution for electrical projects.

• Hub Size: 4 inches
• Length: 30.88 inches
• Height: 10.31 inches

Product Highlights

This product is designed to meet safety standards outlined in UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, and NEMA FB-1.

Product Information

Standard Information

• Catalog Number: BUB400-M
• Brand: Appleton Electric

Technical Specifications

• Material: Malleable Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder Coat)
• Connection: Tapered Female Threaded
• Capacity: 960 Cubic Inches
• Application: For Use With Rigid Metal Conduit and IMC
• Special Features: Built-in rollers for cable pulling, captive screws for easy installation
