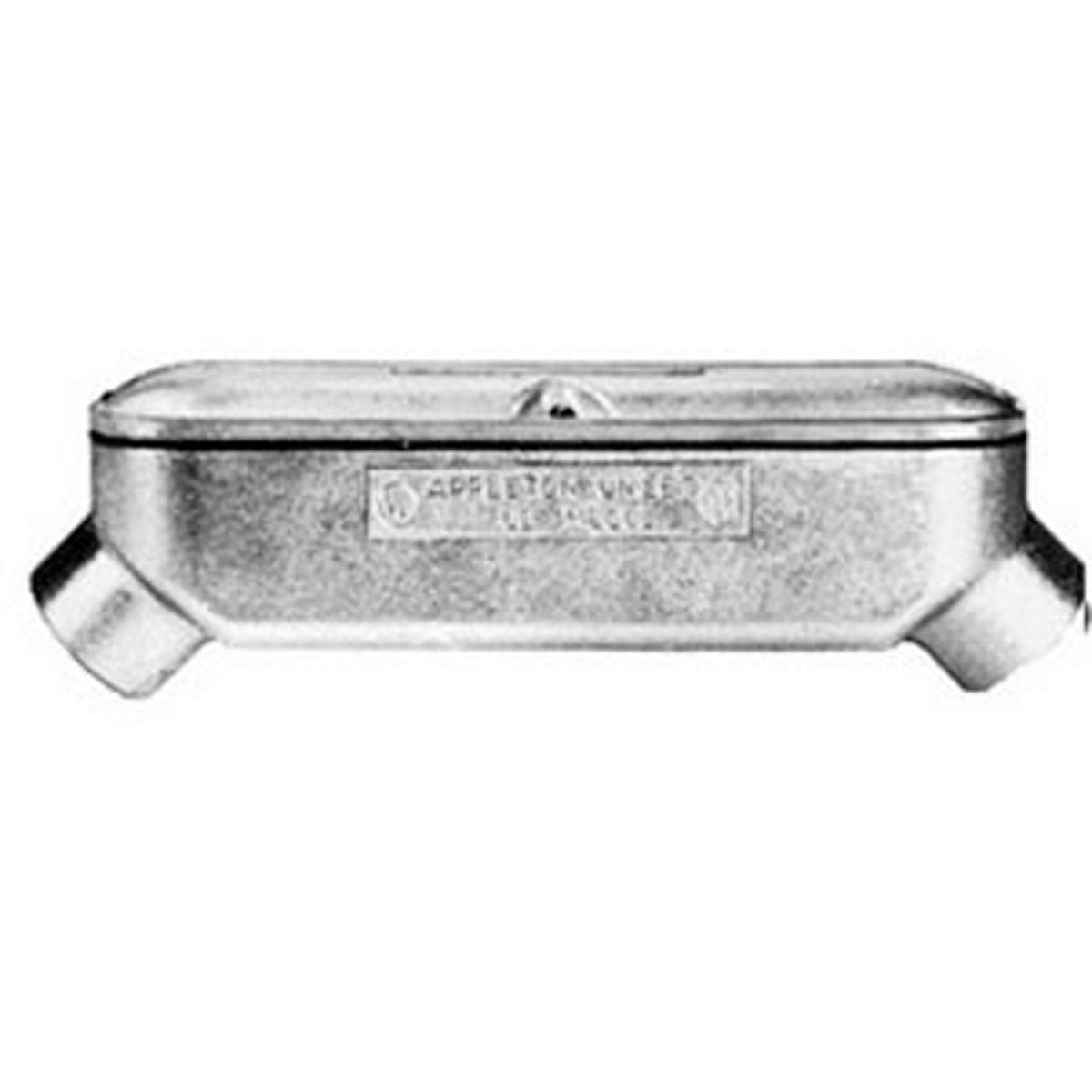

Appleton BUB300-M 3 Mogul Unilet Type UB NEC 6X Conduit Outlet Body With Assembled Cover And Gasket

Product Description

The Appleton BUB300-M is a mogul unilet type UB NEC 6X conduit outlet body. It comes with an assembled cover and gasket. This product is designed for use with rigid metal conduit and intermediate metal conduit (IMC).

• Hub size: three inches
• Dimensions: twenty-two point eighty-eight inches long, four point sixty-three inches wide, and seven point thirty-one inches high
• Material: malleable iron with a triple-coat finish

Product Highlights

Designed for durability and efficiency, the BUB300-M provides reliable connections in electrical installations. Ideal for heavy conductor pulling and suitable for both straight and angled conduits.

Product Information

Standard Information

• Brand: Appleton Electric
• Manufacturer Part Number: BUB300-M

Technical Specifications

• Material: Malleable Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder Coat)
• Connection Type: Tapered Female Threaded
• Hub Size: 3 IN
• Length: 22.88 IN
• Width: 4.63 IN
• Height: 7.31 IN
• Capacity: 445 CU-IN
• Standards: UL 514B, CSA C22.2 No. 18.3, NEMA FB-1
