Product Description

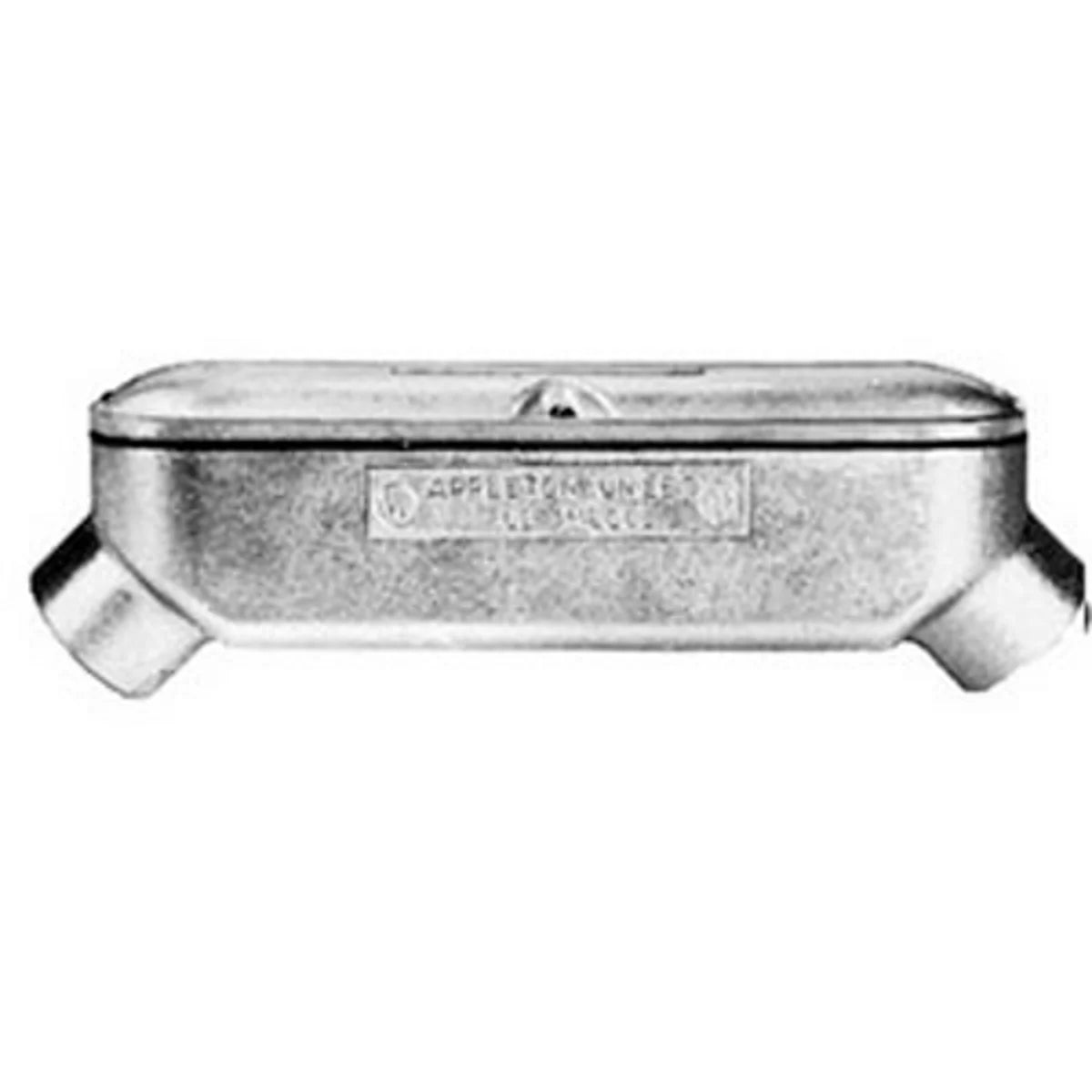

The Appleton BUB250-M is a Type UB NEC 6X conduit outlet body. It features an assembled cover and gasket, and is designed for use with rigid metal conduit and intermediate metal conduit (IMC). The hub size measures two and a half inches. The overall dimensions of the product are twenty-two point eighty-eight inches in length, four point sixty-three inches in width, and seven point zero six inches in height. Constructed from malleable iron, it benefits from a triple-coat finish, which consists of zinc electroplate, chromate, and epoxy powder coat.
- Hub Size: 2-1/2 inches
- Length: 22.88 inches
- Material: Malleable Iron
Product Highlights
This fixture meets various industry standards including UL 514B and CSA certifications. The tapered female threaded connection ensures a secure fit.
Product Information
Standard Information
-
Brand: Appleton
-
Manufactured By: Appleton Electric
Technical Specifications
-
Hub Size: 2-1/2 inches
-
Length: 22.88 inches
-
Width: 4.63 inches
-
Height: 7.06 inches
-
Material: Malleable Iron
-
Standard: UL 514B, CSA C22.2 No. 18.3
-
Connection: Tapered Female Threaded
-
Application: For use with Rigid Metal Conduit and IMC
