Appleton BUB200-M MOGUL UNILET TYPE UB 2 IN

Product Description

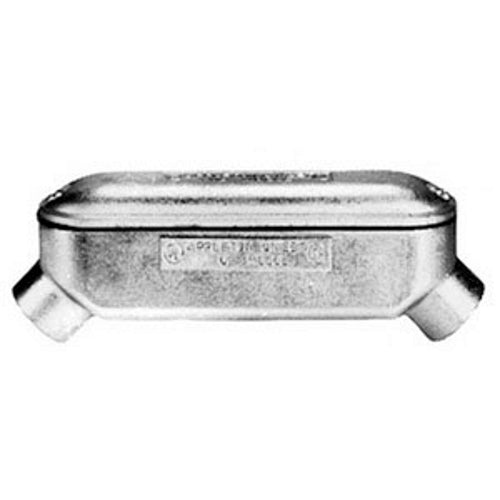

The Appleton BUB200-M is a Mogul Unilet Type UB NEC six by six conduit outlet body. It features an assembled cover and gasket. The hub size is two inches. The body measures fifteen and one quarter inches in length, three and thirteen hundredths inches in width, and five inches in height. It is made from malleable iron and has a triple-coat finish that includes zinc electroplate, chromate, and epoxy powder.

• Hub size: two inches
• Material type: malleable iron
• Overall dimensions: fifteen and one quarter inches long, three and thirteen hundredths inches wide, five inches high

Product Highlights

This product is suitable for use with rigid metal conduit and intermediate metal conduit (IMC). It includes a tapered female threaded connection that ensures a secure fit during installation. The assembly allows for efficient cable pulling and includes special features that enhance functionality.

Product Information

Standard Information

• Catalog Number: BUB200-M
• Manufacturer: Appleton Electric

Technical Specifications

• Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder)
• Hub Size: 2 inches
• Material: Malleable Iron
• Wiring Capacity: 134 cubic inches
• Application: Designed for use with Rigid Metal Conduit and IMC
• Connection Type: Tapered Female Threaded
• Country of Origin: Mexico
• Standards: UL 514B, CSA C22.2 No. 18.3, NEMA FB-1
