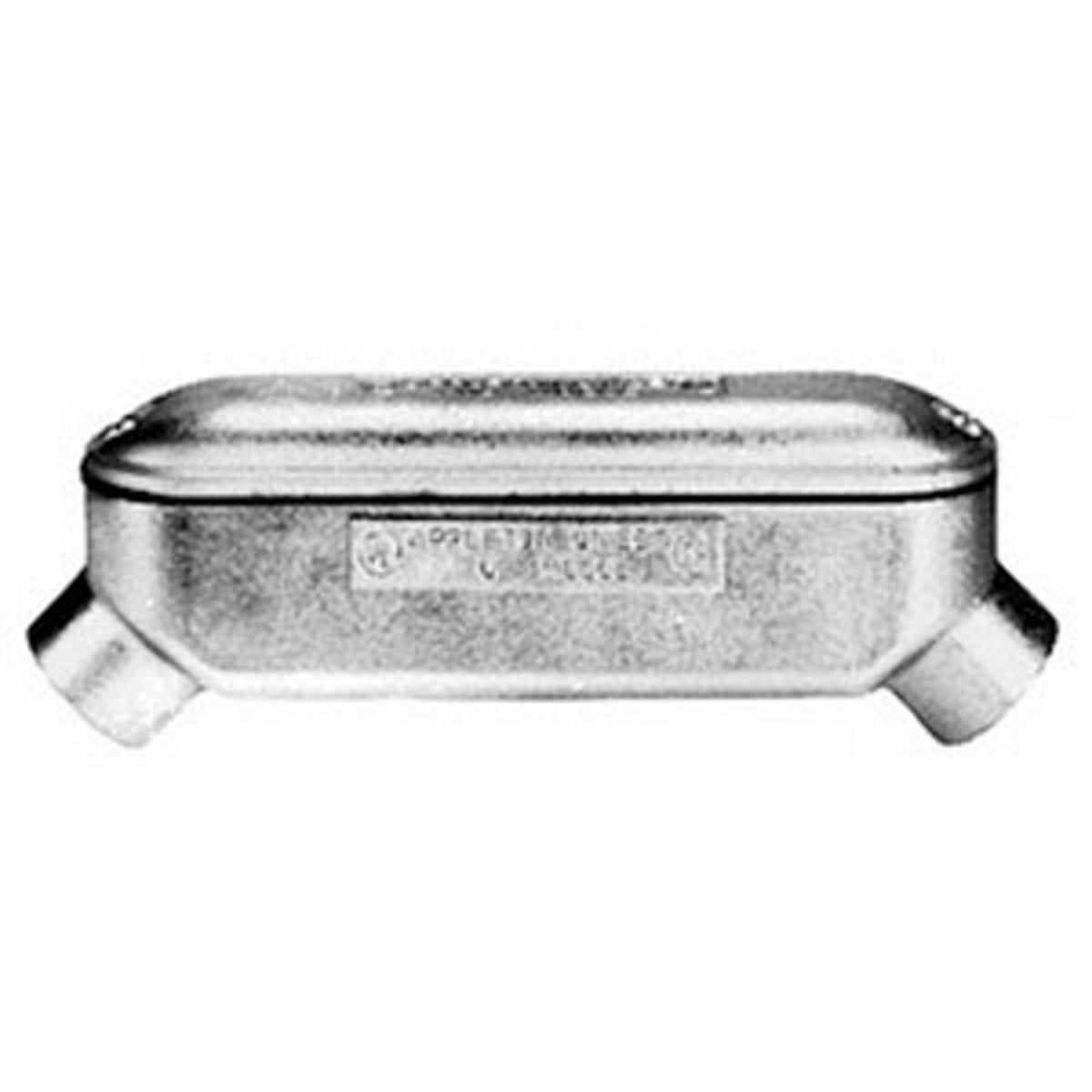

Appleton BUB100-M 1 Mogul Unilet Type UB Conduit Outlet Body

Product Description

The Appleton BUB100-M is a Mogul Unilet Type UB NEC conduit outlet body. This unit features an assembled cover and gasket. It is suited for use with rigid metal conduit and IMC. The hub size is one inch, making it versatile for various installations.

• Material: Malleable Iron
• Dimensions: Length of nine point six three inches, width of two point three eight inches, and height of three and one-half inches
• Finish: Triple-coat with zinc electroplate, chromate, and epoxy powder coat

Product Highlights

Designed for durability and reliability in electrical fittings, this outlet body facilitates secure connections and meets UL and CSA standards.

Product Information

Standard Information

• Brand: Appleton Electric
• Product MPN: BUB100-M

Technical Specifications

• Hub Size: 1 inch
• Material: Malleable Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder Coat)
• Standard Compliance: UL 514B, CSA C22.2 No. 18.3, NEMA FB-1
• Dimensions: Length 9.63 inches, Width 2.38 inches, Height 3.5 inches
• Connection Type: Tapered Female Threaded
• Application: For use with rigid metal conduit and IMC
