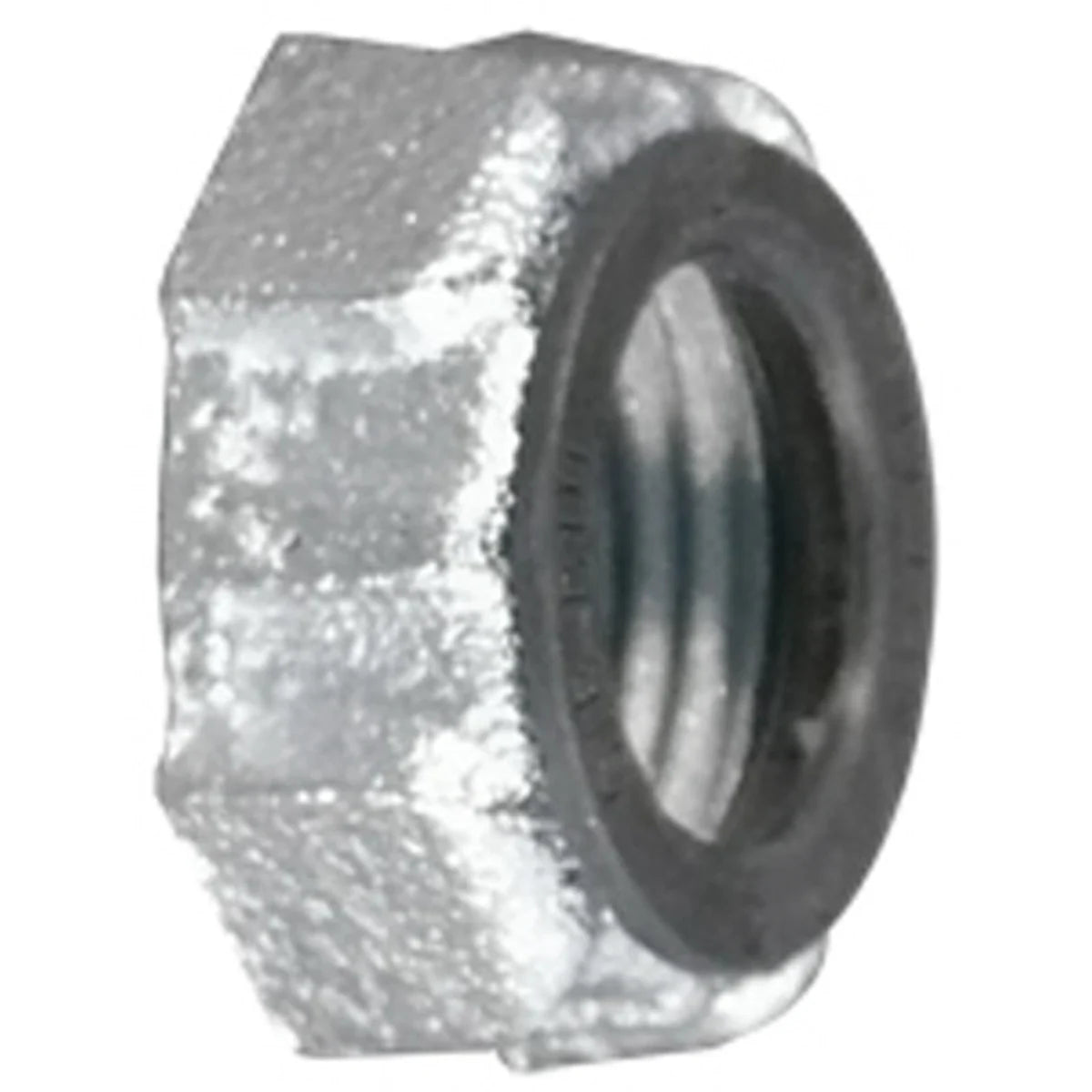

Appleton BU-75I 3/4 Malleable Insulated Bushing

Product Description

The Appleton BU-75I is a three-quarter-inch insulated conduit bushing designed for use in rigid metal conduit and intermediate metal conduit systems. This product is made of malleable iron and features a zinc electroplate finish.

• Trade Size: 3/4 inches
• Temperature Rating: 150 degrees Celsius
• Connection Type: Threaded

Product Highlights

This insulated bushing offers a reliable solution for terminating conduits with a smooth interface for wire and cable pulling.

Product Information

Standard Information

• Brand: Appleton Electric
• Manufacturer Part Number: BU-75I

Technical Specifications

• Material: Malleable Iron
• Finish: Zinc Electroplate
• Dimensions: 0.56 inches height, 1.44 inches diameter
• Application: For use with locknut to terminate rigid metal conduit or IMC to a box or enclosure
• Standards: UL 514B, CSA C22.2 No. 18.3
• UPC: 781381161657
• Weight: 0.07 pounds
