Appleton BU-125 1-1/4 Rigid Conduit Bushings

Product Description

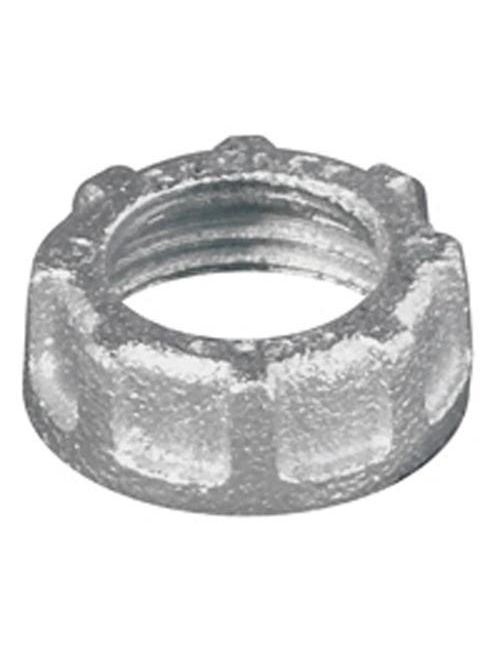

The Appleton BU-125 is a 1-1/4 inch rigid conduit bushing designed for use with locknuts to terminate rigid metal conduit or intermediate metal conduit to a box or enclosure. This product is constructed from malleable iron and features a zinc electroplated finish for corrosion resistance. The connection type is threaded, allowing for easy installation and secure fittings.

• Conduit size: 1-1/4 inches
• Material: Malleable iron
• Standard compliance: UL 514B, CSA C22.2

Product Highlights

This conduit bushing ensures a reliable connection for electrical systems in various settings, maintaining safety and compliance with industry standards.

Product Information

Standard Information

• Catalog Number: BU-125
• Manufacturer: Appleton Electric

Technical Specifications

• Trade Size: 1-1/4 inch
• Material: Malleable iron
• Finish: Zinc electroplate
• Height: 0.63 inches
• Diameter: 2 inches
• Connection Type: Threaded
• Application: For use with locknut to terminate rigid metal conduit or IMC to a box or enclosure
• Standards: UL 514B, E14814, CSA C22.2 No. 18.3, NEMA FB-1
