Appleton BU-100I Insulated Conduit Bushing 1 Inch Replacement MPN

Product Description

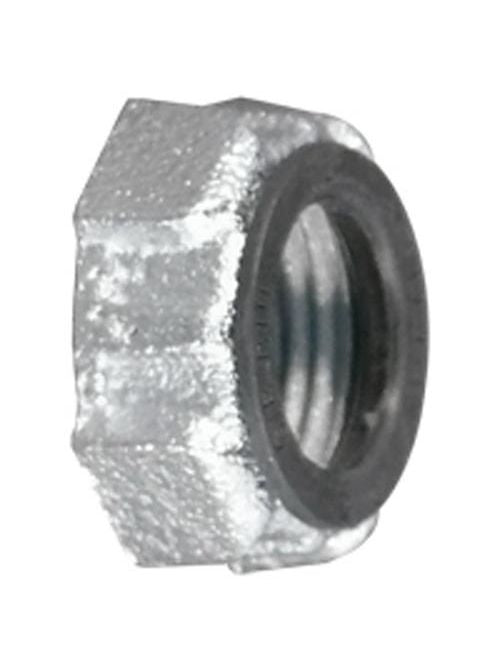

The Appleton Group BU-100I is a one inch insulated conduit bushing designed to provide a secure connection for rigid metal tubing. Built from malleable iron, this bushing features a zinc electroplate finish for durability and resistance to corrosion. Its temperature rating of one hundred fifty degrees Celsius makes it suitable for a variety of applications in both commercial and industrial settings.

• Dimension: One and three-fourth inches diameter and zero point six three inches height.
• Meets standards: UL 514B, E14814, and CSA C22.2 No. 18.3.
• Facilitates connection to boxes or enclosures using a locknut.

Product Highlights

This insulated conduit bushing is engineered for terminating rigid metal conduit or intermediate metal conduit to a box or enclosure.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Catalog Number: BU-100I

Technical Specifications

• Material: Malleable Iron
• Finish: Zinc Electroplate
• Trade Size: One Inch
• Connection Type: Threaded
• Temperature Rating: One Hundred Fifty Degrees Celsius
• Dimensions: Zero point six three inches height x one and three-fourth inches diameter
• Standards: UL 514B, E14814, CSA C22.2 No. 18.3
• Applications: For use with locknut to terminate rigid metal conduit or IMC to a box or enclosure
