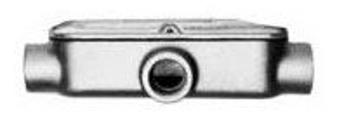

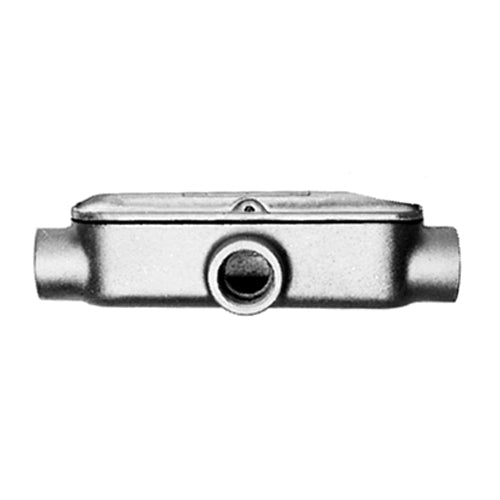

Appleton BT400-M 4 Malleable T Mogul Unilet (Body Cover & Gasket)

Product Description

The Appleton BT400-M is a four-inch mogul Unilet body cover and gasket, designed for use with threaded rigid metal conduit and intermediate metal conduit (IMC). This product is made from malleable iron, ensuring durability and reliability in various applications. It features an assembled cast cover and neoprene gasket, perfect for maintaining a secure and weather-resistant seal.

• Hub Size: Four inches
• Material: Malleable Iron
• Designed for threaded installations

Product Highlights

This conduit body is suitable for pulling large and heavy conductors, capable of handling straight runs and angled turns, making it versatile for different electrical setups.

Product Information

Standard Information

• Catalog Number: BT400-M
• Manufacturer: Appleton Electric
• Country of Origin: Mexico

Technical Specifications

• Material: Electro Zinc Plated Dichromate Epoxy Powder Coated Malleable Iron
• Hub Location: Tee
• Number of Hubs: 3
• Capacity: 1010 cubic inches
• Approval: UL 514B, CSA C22.2, NEC, CEC
• Size: 35.38 inches length x 7.25 inches width x 7.56 inches height
