Appleton BT300-M 3 Malleable T Mogul Unilet (Body, Cover & Gasket)

Product Description

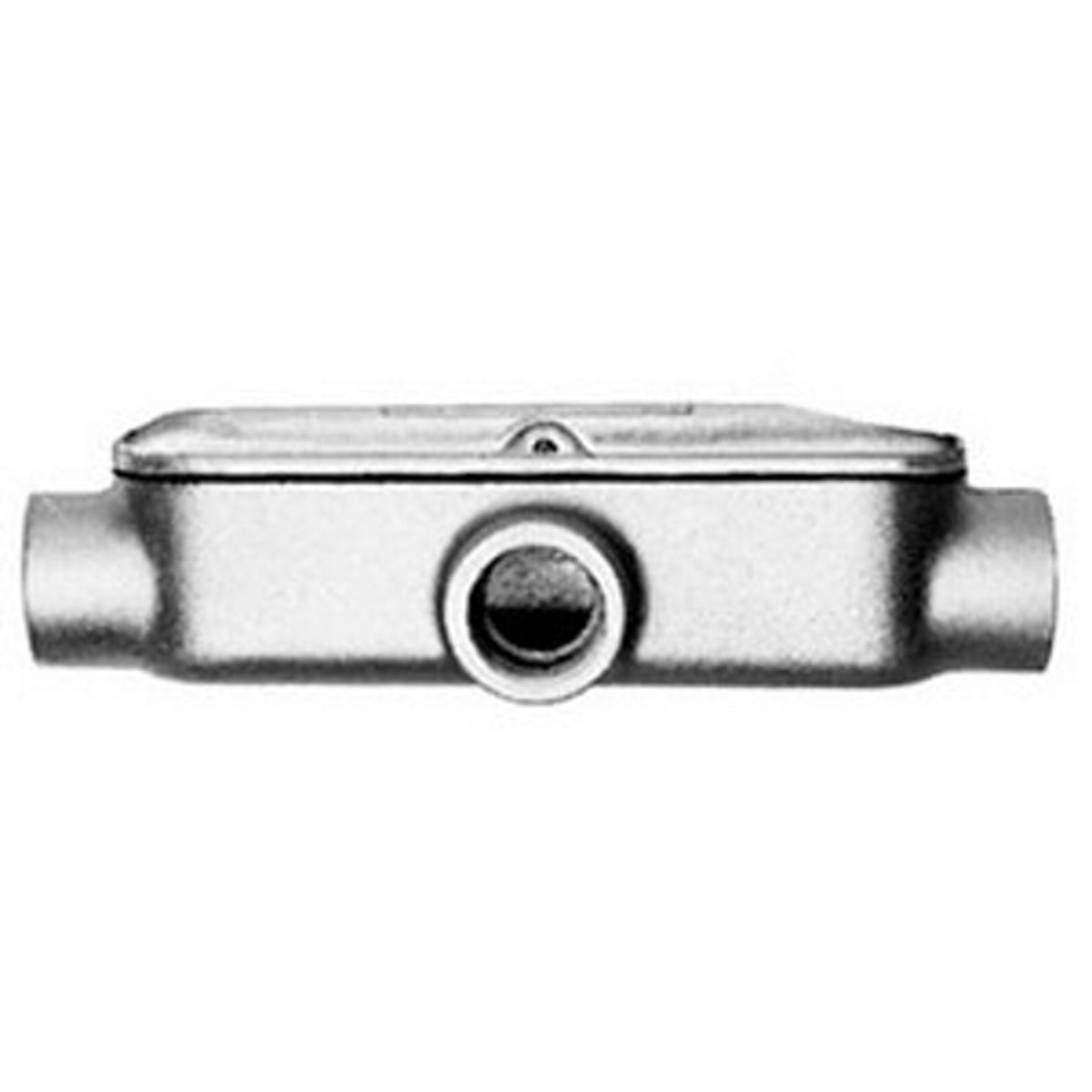

The Appleton BT300-M is a conduit outlet body designed for electrical installations. It is made of malleable iron, ensuring durability and strength. This model features a hub size of three inches and includes an assembled cover and gasket for efficient sealing.

• Hub Size: 3 inches
• Material: Malleable Iron
• Installation: Threaded

Product Highlights

Ideal for use with rigid metal conduit and IMC, offering a reliable connection and robust performance.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Brand: Appleton

Technical Specifications

• Catalog Number: BT300-M
• Length: 26.88 inches
• Width: 6 inches
• Height: 5.94 inches
• Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder Coat)
• Application: For Use With Rigid Metal Conduit and IMC
• Special Features: Built-in rollers for easy cable pulling; round integral bushing protects conductor insulation; captive stainless steel screws for secure installation; designed for large conductor capabilities; wiring capacity of 475 cubic inches
• Country of Origin: Mexico
• Approval Standards: UL 514B, CSA C22.2
• UPC: 781381474214
