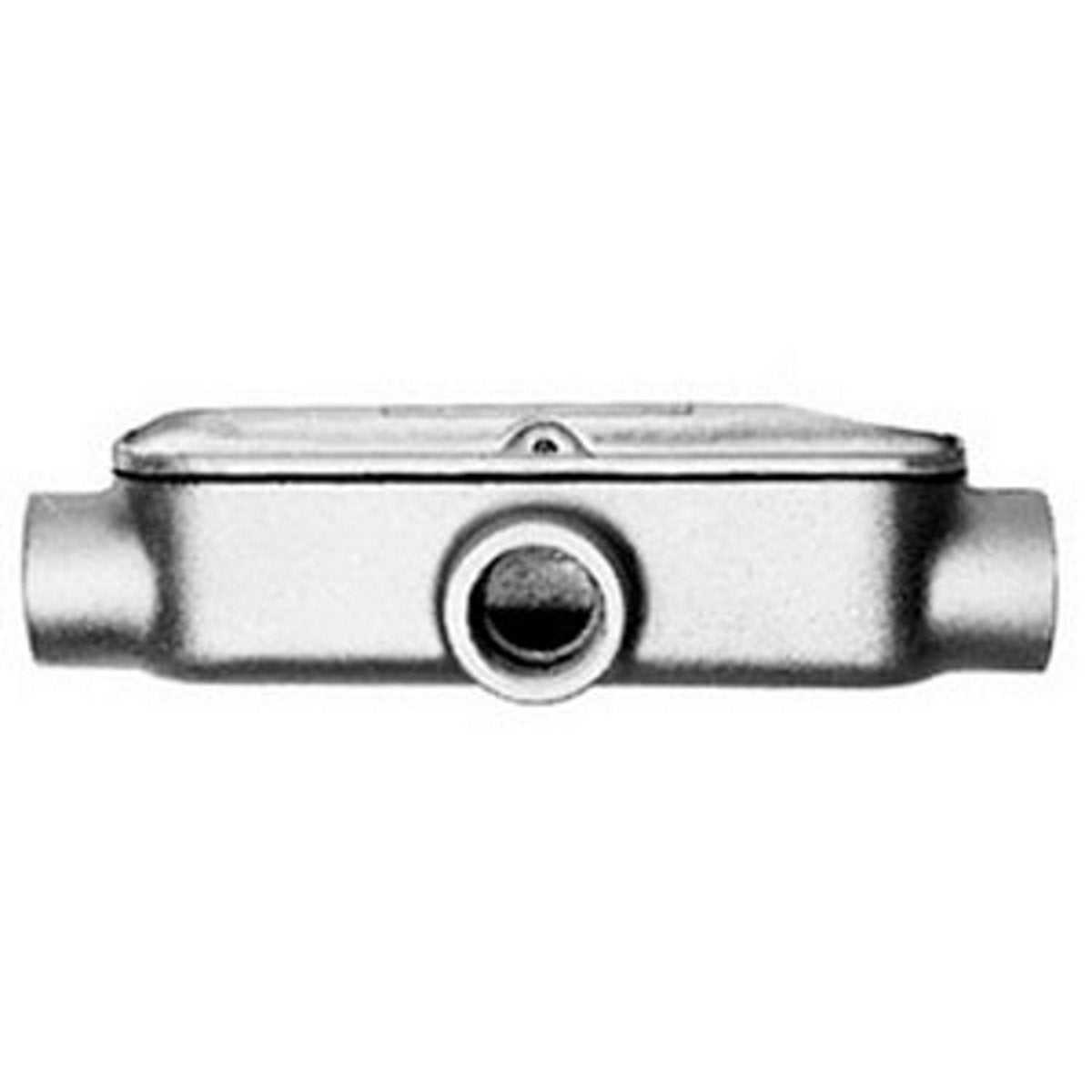

Appleton BT200-M Mogul Unilet Conduit Outlet Body 2 Inch

Product Description

The Appleton BT200-M is a Mogul Unilet conduit outlet body designed for use with rigid metal conduit and IMC systems. This unit features a two-inch hub size. It is made of malleable iron and has a triple-coat finish that includes zinc electroplate, chromate, and epoxy powder. The dimensions of the product are seventeen point ninety-four inches in length, four point thirteen inches in width, and four point forty-four inches in height.

• Constructed with durable malleable iron.
• Has built-in rollers to facilitate cable pulling.
• Complies with UL and CSA standards for safety and performance.

Product Highlights

This conduit outlet body is ideal for installations requiring robust and reliable connections in electrical wiring systems.

Product Information

Standard Information

• Brand: Appleton
• MPN: BT200-M

Technical Specifications

• Material: Malleable Iron
• Hub Size: 2 Inches
• Length: 17.94 Inches
• Width: 4.13 Inches
• Height: 4.44 Inches
• Finish: Triple-Coat (Zinc Electroplate, Chromate and Epoxy Powder Coat)
• Approval Standards: UL 514B, CSA C22.2 No. 18.3
• Application: Suitable for Rigid Metal Conduit and IMC
