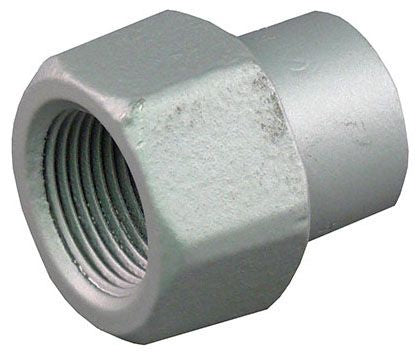

Appleton BR7550A Bell Reducer 3/4 X 1/2 Inch Conduit

Product Description

The APPLETON BR7550A is a bell reducer conduit fitting designed to transition between two different conduit trade sizes within an electrical raceway system. Bell reducers are used to connect a larger conduit opening to a smaller one, maintaining a smooth, protected pathway for conductors at the junction. This fitting reduces from a 3/4 inch trade size to a 1/2 inch trade size. It is a standard component installed by licensed electricians during conduit runs in commercial and industrial electrical installations.

The BR7550A is suited for use in conduit systems where trade size transitions are required between sections of rigid metal conduit, intermediate metal conduit, or compatible threaded conduit systems. It is commonly installed at enclosure entries, junction boxes, and inline conduit transitions where a 3/4 inch to 1/2 inch reduction is needed.

Key Features

• Reduces from 3/4 inch trade size to 1/2 inch trade size
• Bell-style body provides a smooth interior transition to protect conductor insulation
• Threaded connection on both ends for secure, tight conduit joints
• Designed for use in standard electrical conduit raceway installations

Compatibility

Designed as an OEM-style fitting for use with threaded rigid metal conduit and intermediate metal conduit systems requiring a 3/4 inch to 1/2 inch trade size transition.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the circuit before working on any conduit system. Use appropriate thread sealant or conduit wrench as required by the installation environment. Do not overtighten threaded fittings, as this can damage threads and compromise the integrity of the conduit joint.

Technical Specifications

• Inlet Trade Size: 3/4 inch
• Outlet Trade Size: 1/2 inch
• Fitting Type: Bell Reducer
• UPC: 78138175840

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: BR7550A
