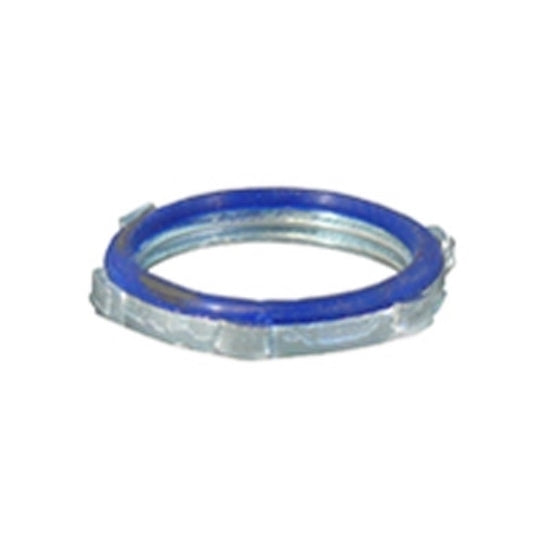

Appleton BLSG-150 Sealing Locknut 1-1/2 inches

Product Description

The APPLETON BLSG-150 1-1/2" Sealing Locknut is designed to secure and ground conduits and fittings to enclosures, preventing loosening from vibration or motion. Constructed from steel, it is suitable for use with rigid conduit and IMC. This locknut features a PVC gasket for a liquid-tight seal in commercial and industrial applications.

• Made of steel
• For use with rigid conduit and IMC
• Secures nuts to prevent loosening

Product Highlights

The APPLETON BLSG-150 sealing locknut ensures a secure, liquid-tight connection for rigid conduit and IMC applications.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: BLSG-150
• Country of Origin: India

Technical Specifications

• UNSPSC: 31161716
• Material: Steel
• Application: For securing an ordinary nut from working loose by locking itself when screwed down tight
• Size: 1-1/2
• Series: BLSG
• Dimensions: 0.28 in H x 2.41 in W
• Suitable For Use With: Rigid Conduit/IMC
• Catalog Number: BLSG-150
• Manufacturer: Appleton Electric
• Brand: Appleton
• Country of Origin: India
• Made in USA: No
• Special Features: Used To Secure An Ordinary Nut From Working Loose By Locking, Itself When Screwed Down Tight
• Standard: UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA Certified 065178, NEMA FB-1
• UPC: 781381314237
• GTIN: 00781381314237
• Item Type: PVC Gasketed Sealing Locknut
• Width: 2.41
• Width UOM: Inch
• Height: 0.28
• Height UOM: Inch
• Thread Size: 1-1/2 IN
• ARRA Compliant: N
• Buy American Compliant: N
• EU RoHS Indicator: C
• Gross Weight Per Pack: 0.0800 lb
• Gross Weight per Pack Metric: 0.02
• Gross Weight UOM Metric: kg
• Height [Metric]: 1.8288 mm
• Length: 7.50 in
• Length [Metric]: 19.0500 cm
• Nut Type: Locknut
• Standards: UL 514B File No. E14814CSA C22.2 No. 18.3CSA Certified 065178RoHS Compliant
• Type: PVC Gasketed Sealing Locknut
• UPC 11: 78138131423
• UPC 12: 781381314237
• Width [Metric]: 11.6840 cm
• Stock Status: NORMALLY STOCKED
• Model: BLSG-150
