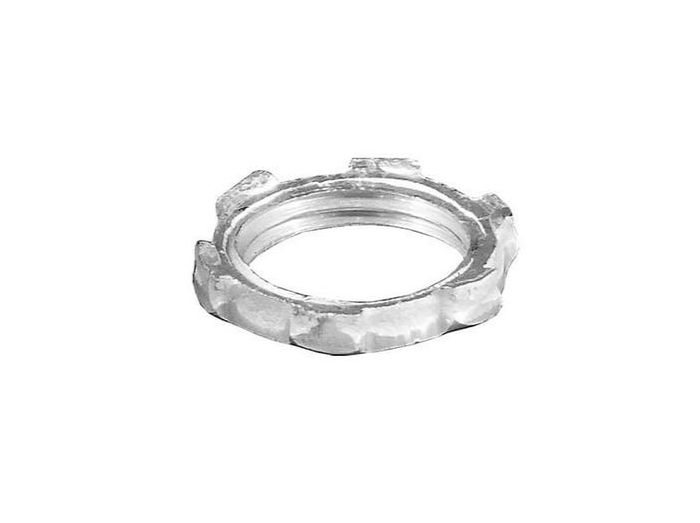

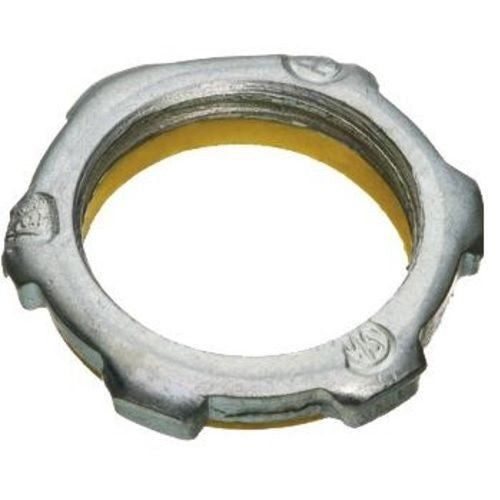

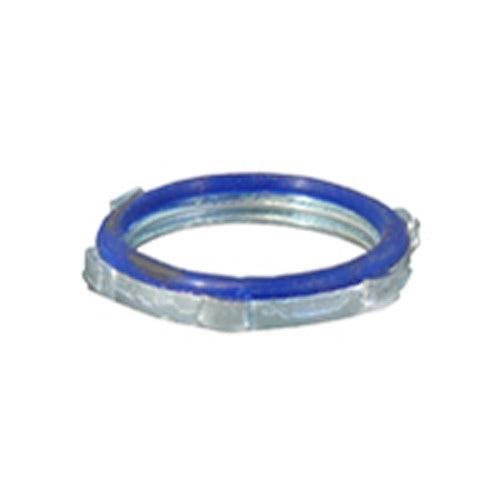

Appleton BLSG-125 Liquid Tight Sealing Locknut 1-1/4 in

Product Description

The APPLETON BLSG-125 liquid tight sealing locknut is used for equipment installation and applications needing flexibility and protection against liquids, vapors, or solids. It is suitable for use with rigid conduit and IMC. It secures an ordinary nut from working loose by locking itself when screwed down tight.

• Used to secure an ordinary nut from working loose by locking, itself when screwed down tight

Product Highlights

The APPLETON liquid tight sealing locknut is made of steel with PVC gasket. It is suitable for use with rigid conduit and IMC.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: BLSG-125

Technical Specifications

• Material: Steel
• Size: 1-1/4 in
• Suitable For Use With: IMC/Rigid Conduit
• Standard & Approvals: UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA Certified 065178, NEMA FB-1
• Series: BLSG
• Catalog ID: APPBLSG-125
• Brand: Appleton
• MPN: BLSG125
• Applications: For Rigid Conduit And IMC
• Nut Type: Locknut
• Thread Size: 1-1/4 in
• Trade Size: 1-1/4 Inch
• Type: PVC Gasketed Sealing Locknut
• Height: 0.28 Inch
• Width: 2.09 in
• Manufacturer Part Number: BLSG-125
• Manufacturer: Appleton
• Product Series: Conduit and IMC locknut
• Family Series: Appleton Fittings, Conduit and IMC locknut Series
• Conduit/Cable Type: Sealing
• Composition: Metallic
• NEMA Rating: NEMA FB1
• Hazardous Location: No
• Grounding: No
• Approvals: CSA, UL
