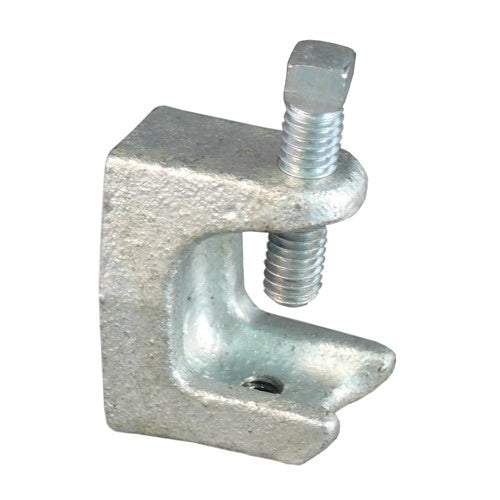

Appleton BH-503 2-1/2 IN Beam Clamp

Product Description

The Appleton BH-503 is a 2-1/2 inch beam clamp designed for support in conduit hanging systems. Made of malleable iron and finished with hot-dipped galvanization, it provides robust durability and strength. This clamp supports a maximum load of nine hundred pounds and allows a jaw opening of one point thirteen inches.

• Material: Malleable Iron
• Maximum Load: 900 LB
• Jaw Width: 1.69 IN

Product Highlights

Ideal for various commercial and industrial applications, the BH-503 is suitable for either ordinary or hazardous location installations. It features a square head screw included in the package.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: BH-503
• Material: Malleable Iron
• Finish: Hot Dipped Galvanized
• Maximum Jaw Capacity: 1.13 IN
• Screw Type: Square Head
• Screw Size: 1/2 Inch - 13 TPI
• Overall Dimensions: Width: 2.63 IN, Height: 2.25 IN
• Standard Approval: CSA C22.2, CEC
