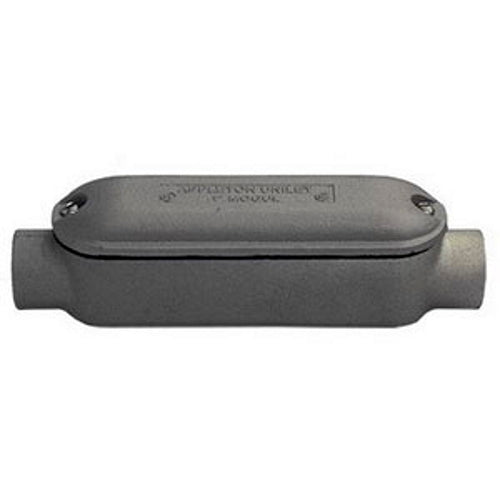

Appleton BC400-M Mogul Type C Conduit Body 4 Inch

Product Description

The Appleton Group BC400-M is a four-inch Mogul UNILETS Type C conduit outlet body. It is designed to provide reliable connections and effective protection for conduits. The body includes an assembled cover and gasket, suitable for both threaded rigid metal and IMC conduit applications.

• Hub size: four inches
• Constructed from malleable iron
• Triple-coat finish for enhanced durability

Product Highlights

This conduit outlet body is ideal for use in electrical installations where durability and safety are critical. It supports efficient cable pulling and protects against environmental factors.

Product Information

Standard Information

• Brand: Appleton Electric
• Catalog Number: BC400-M

Technical Specifications

• Material: Malleable Iron
• Length: 35.38 inches
• Width: 5.63 inches
• Height: 7.56 inches
• Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder)
• Hub Size: 4 inches
• Application: For use with rigid metal conduit and IMC
• Connection Type: Tapered Female Threaded
• Wiring Capacity: 1010 CU-IN
• Standards: UL 514B, CSA C22.2 No. 18.3
