Appleton BC300-M 3 Inch Type C Mogul Unilet

Product Description

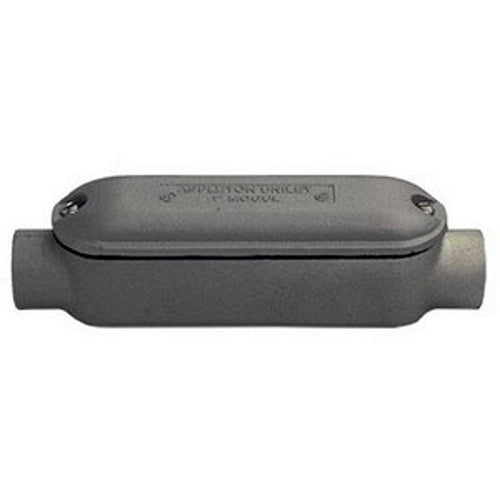

The Appleton Group BC300-M is a three inch Type C Mogul Unilet designed for use with rigid metal conduit. The hub size is three inches with a length of twenty-six point eighty-eight inches, width of four point sixty-three inches, and height of five point ninety-four inches. This product is manufactured from malleable iron and features a triple-coat finish of zinc electroplate, chromate, and epoxy powder coat for durability.

• Hub size: 3 inches
• Material: Malleable Iron
• Connection type: Tapered female threaded

Product Highlights

This conduit outlet body has exclusive built-in rollers to aid in cable pulling and a smooth integral bushing in each hub to protect conductor insulation.

Product Information

Standard Information

• Catalog Number: BC300-M
• Brand: Appleton Electric

Technical Specifications

• Length: twenty-six point eighty-eight inches
• Width: four point sixty-three inches
• Height: five point ninety-four inches
• Hub Size: 3 inches
• Material: Malleable Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate and Epoxy Powder Coat)
• Application: For Use With Rigid Metal Conduit And IMC
• Standards: UL 514B, CSA C22.2 No. 18.3
• Special Features: Exclusive built-in rollers facilitate cable pulling; smooth rounded integral bushing in each hub protects conductor insulation; accurately tapped tapered threads for tight connections; captive stainless steel screws for ease of installation.
• Capacity: 475 CU-IN
