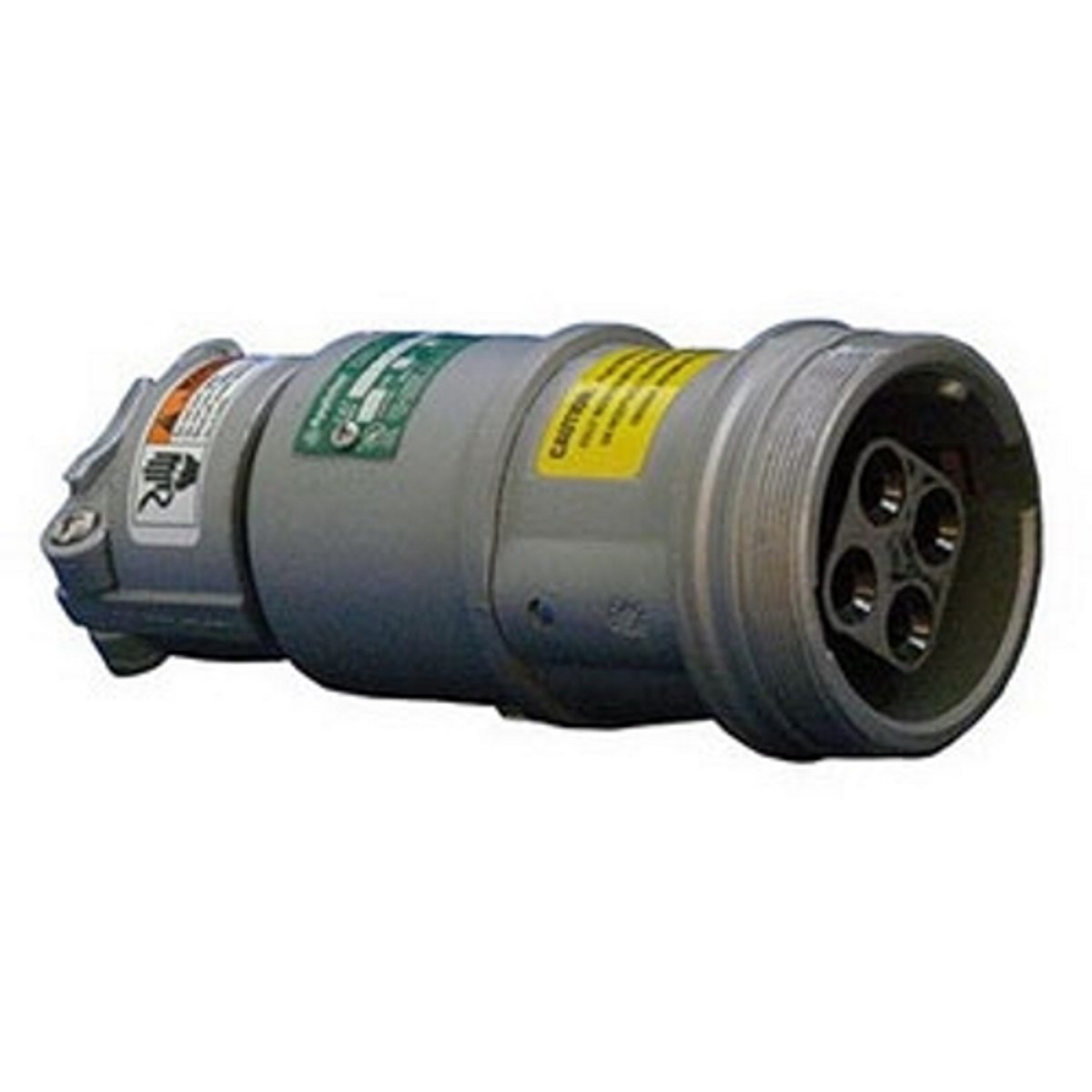

Appleton ARC6044BC 4-Wire 4-Pole Connector Body Assembly

Product Description

The Appleton ARC6044BC is a four-wire, four-pole connector body assembly designed for high-performance applications. It operates at a maximum voltage of six hundred volts alternating current and two hundred fifty volts direct current. With a current rating of sixty amps, this device is suitable for various demanding environments.

• Rated for 60 amps, suitable for rigorous applications
• Compatible with wire sizes of six to two American Wire Gauge
• Constructed from aluminum, ensuring durability

Product Highlights

Designed for use in portable or fixed electrical settings, including motor generator units, welders, and other equipment. This connector body is ideal for shipping docks and outdoor applications.

Product Information

Standard Information

• Brand: Appleton
• Sub Brand: Powertite

Technical Specifications

• MPN: ARC6044BC
• Catalog Number: ARC6044BC
• Phase: 3
• Temperature Rating: -40 to 107 degrees C
• Construction Material: Copper-free aluminum
• Connection Type: Pressure wire terminal
• Number of Poles: 4
• Wire Size: 6-2 AWG (Building), 6-4 AWG (Extra Flex)
• Voltage Rating: 600 VAC at 50-400 Hz, 250 VDC
• Application: For ACP6044BC metallic clamping ring plug
