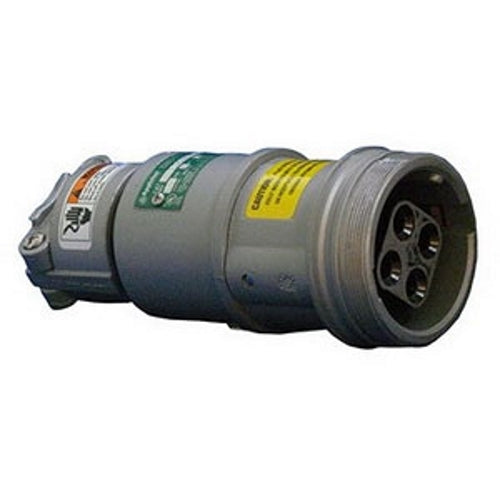

Appleton ARC6034BC 4-Pole Connector Body, 600 VAC, 250 VDC, 60 A, 3-Wire

Product Description

The Appleton ARC6034BC is a 4-pole connector body designed for a variety of electrical applications. It supports a voltage rating of six hundred volts AC and two hundred fifty volts DC with an amperage rating of sixty amps. The product is suitable for use with various industrial equipment.

• Rated for 600 VAC and 250 VDC
• Constructed from copper-free aluminum
• Compatible with 6 to 2 AWG wire sizes

Product Highlights

This connector body provides secure connections for portable or fixed electrical devices. Its rugged design is suitable for harsh environments.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Catalog Number: ARC6034BC

Technical Specifications

• Amperage Rating: 60 A
• Number of Poles: 4
• Number of Wires: 3
• Wire Size: 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex)
• Voltage Rating: 600 VAC at 50 - 400 Hz, 250 VDC
• Temperature Rating: -40 to 107 Degrees Celsius
• Material: Copper-free aluminum
• NEMA Rating: 3, 3R, 4, 4X
