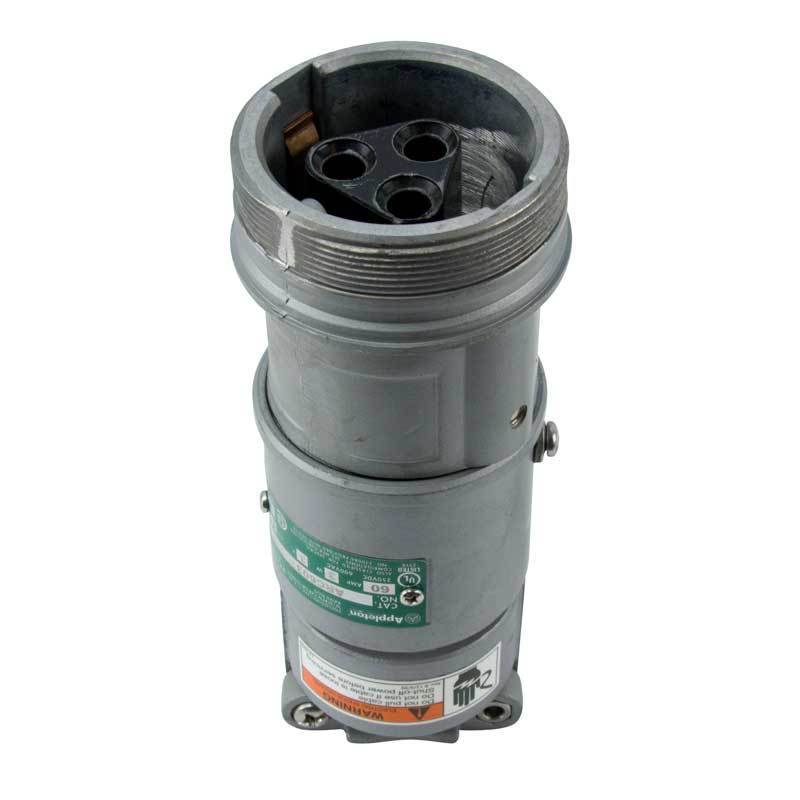

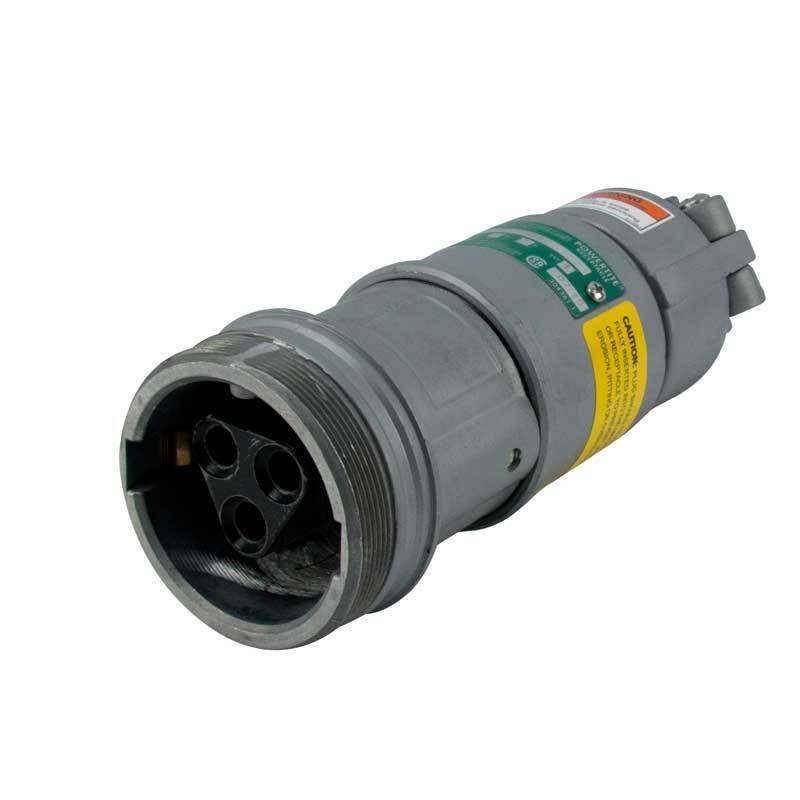

Appleton ARC6033BC Powertite Connector Body 60A (3-Pole/3-Wire)

Brand: APPLETON
SKU: ARC6033BC
Availability: In Stock

Ships same day if ordered by 12 pm
$566.15
$566.15
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Appleton ARC6033BC is a Powertite grounding style 1 connector body rated 60 A for 600 VAC (50–400 Hz) and 250 VDC. The 3-pole, 3-wire pin-and-sleeve assembly accepts 6–2 AWG building wire and 6–4 AWG extra-flex cable, with a copper-free aluminum shell and glass-filled polyester insulating blocks. It features a pressure wire terminal and NEMA 3/3R/4/4X weatherproof ratings for industrial and ship-to-shore power distribution.

  • Rated 60 A, 600 VAC (50–400 Hz) and 250 VDC; 3-pole, 3-wire configuration
  • Accepts 6–2 AWG (building) and 6–4 AWG (extra flex); pressure wire terminal; wire recess diameter 5/16 in
  • Copper-free aluminum shell with glass-filled polyester insulating blocks; NEMA 3/3R/4/4X; operating temperature -40 to 107 °C

Product Highlights

Grounding style 1 Powertite connector body; 60 A, 600 VAC/250 VDC; 3-pole/3-wire; weatherproof NEMA 3/3R/4/4X; accepts 6–2 AWG building and 6–4 AWG extra-flex cables.

Product Information

Standard Information

  • Brand: APPLETON
  • Manufacturer Part Number: ARC6033BC
  • Country of Origin: Mexico
Technical Specifications
Brand
Appleton
Manufacturer Part Number
ARC6033BC
Series
Powertite
Product Type
Connector body (pin-and-sleeve)
Item Type
Grounding Style 1 Connector Body
Current Rating
60 A
Voltage Rating
600 VAC (50-400 Hz), 250 VDC
Frequency
50-400 Hz
Number of Poles
3
Number of Wires
3
Phase
3-phase
Wire Size
6 - 2 AWG (building), 6 - 4 AWG (extra flex)
Cable Diameter
0.500 - 1.375 in
Wire Recess Diameter
5/16 in
Terminal Type
Pressure wire terminal
Material
Copperfree (max 0.4%) aluminum; glass-filled polyester insulating blocks
NEMA Rating
NEMA 3, 3R, 4, 4X
Operating Temperature
-40 to 107 °C
Dimensions
13.25 in L x 3.81 in W
Net Weight
2.41 lbs
Standards/Approvals
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
Country of Origin
Mexico
UPC
781381440622
Connection Type
Connector body / Plug
Grounding Style
Style 1 (shell grounding)
