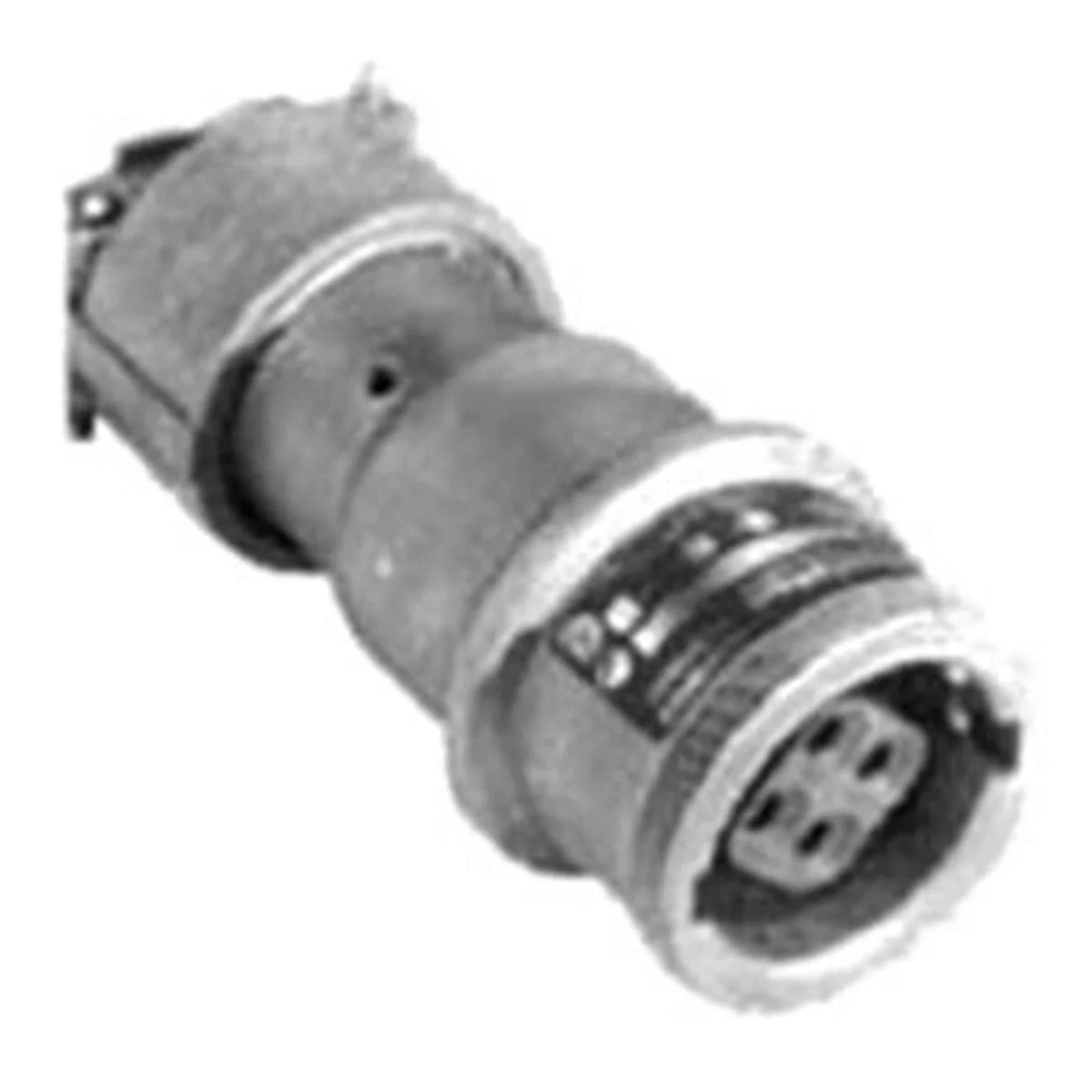

Appleton ARC3023BC 30 Amp 2-Wire 3-Pole Style 2 Connector Assembly

Product Description

The Appleton ARC3023BC is a 30 Amp, 2-Wire, 3-Pole Style 2 Connector Assembly designed for demanding applications. This connector supports wire sizes from ten to six AWG and ten to eight AWG. It functions efficiently at a voltage rating of six hundred VAC and two hundred fifty VDC, making it suitable for various electrical setups.

• Amperage rating of thirty amps.
• Voltage rating of six hundred VAC and two hundred fifty VDC.
• Designed for use with motor generator units, welders, pumps, and compressors.

Product Highlights

This connector assembly is capable of handling intense workloads and is ideal for applications such as shipping docks and ports. It features a pressure wire terminal connection type.

Product Information

Standard Information

• Brand: Appleton Electric
• MPN: ARC3023BC

Technical Specifications

• Catalog Number: ARC3023BC
• Material: Copperfree aluminum
• Amperage Rating: Thirty amps
• Voltage Rating: Six hundred VAC at fifty to four hundred Hz, two hundred fifty VDC
• Number of Poles: Three
• Number of Wires: Two
• Temperature Rating: Negative forty to one hundred seven degrees Celsius
• Grounding Style: Shell and extra pole
