APPLETON Appleton ARC20034E Powertite Grounding Style 2 Pin and Sleeve Connector 200 Amp
APPLETON Appleton ARC20034E Powertite Grounding Style 2 Pin and Sleeve Connector 200 Amp

Appleton ARC20034E Powertite Grounding Style 2 Pin and Sleeve Connector 200 Amp

Brand: APPLETON
SKU: ARC20034E
Availability: Out Of Stock
$29.39
$29.39
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

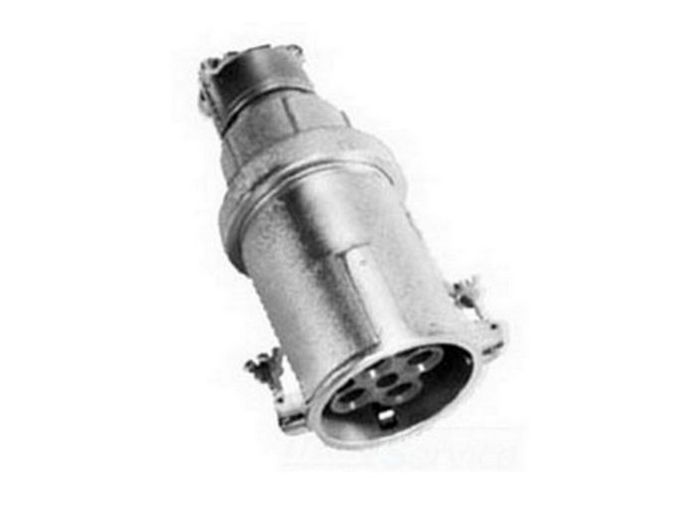

The APPLETON ARC20034E Powertite grounding style 2 connector body is designed to supply power to portable or fixed electrical equipment. It has a 200 AMP amperage rating and is rated for 600 VAC at 50 - 400 HZ and 250 VDC. Constructed from copperfree aluminum, it is suitable for use in locations where a weatherproof enclosure is required.

  • Grounding style: Shell and extra pole
  • Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus
  • Ideal for use on shipping docks, ports and other ship to shore applications

Product Highlights

The APPLETON Powertite connector is ideal for supplying power to portable equipment in demanding environments.

Product Information

Standard Information

  • Brand: APPLETON
  • Manufacturer Part Number: ARC20034E
  • Country of Origin: Mexico
Technical Specifications
Catalog Number
ARC20034E
Manufacturer
Appleton Electric
Brand
Appleton
Sub Brand
Powertite
Country of Origin
Mexico
Made in USA
No
Amperage Rating
200
Application
For AP20034E Plug
Connection
Pressure Wire Terminal
Material
Copperfree (4/10 Of 1 PCT Maximum) Aluminum
NEMA Rating
3, 3R, 4, 4X
Number of Poles
4P
Number of Wires
3
Phase
3
Standard
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
UPC
781381447690
GTIN
00781381447690
Item Type
Grounding Style 2 Connector Body
Temperature Rating
-40 To 107 DEG C
Voltage Rating
600 VAC At 50 - 400 HZ, 250 VDC
Wire Size
2/0 AWG - 250 MCM
Family Series
Appleton Plugs & Receptacles
Description
Powertite Grounding Style 2 Connector Body, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 2/0 AWG - 250 MCM, Amperage Rating: 200 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree 4/10 Of 1 PC
Connection Type
Connector
Connection Description
Straight
Current Rating
200 A
Voltage
250 V, 600 V
Frequency
50-400 Hz
Lockout-Tagout
No
Auxiliary Contact
None
Built-In Strain Relief
No
Wire Size Range
2/0 AWG
Terminal Type
Pressure Wire
Approvals
CSA, UL
Comments
Shell and Extra Pole, For Ordinary Locations
Amps
200
Volts AC
600
IP/NEMA Rating
NEMA 4X, NEMA 3, NEMA 4
Type
Pin and Sleeve Connector
Cable Range
1-7/8 to 2-1/2 in.
Grounding Style
Style 2
Rating - Amps
200 A
Rating - Volts
600 VAC, 250 VDC
