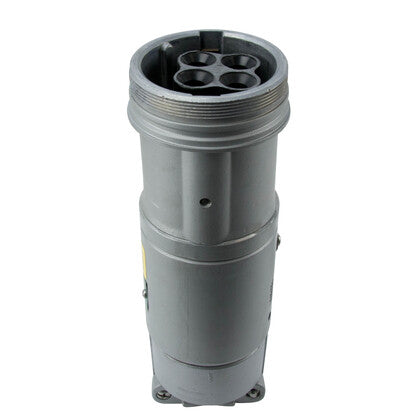

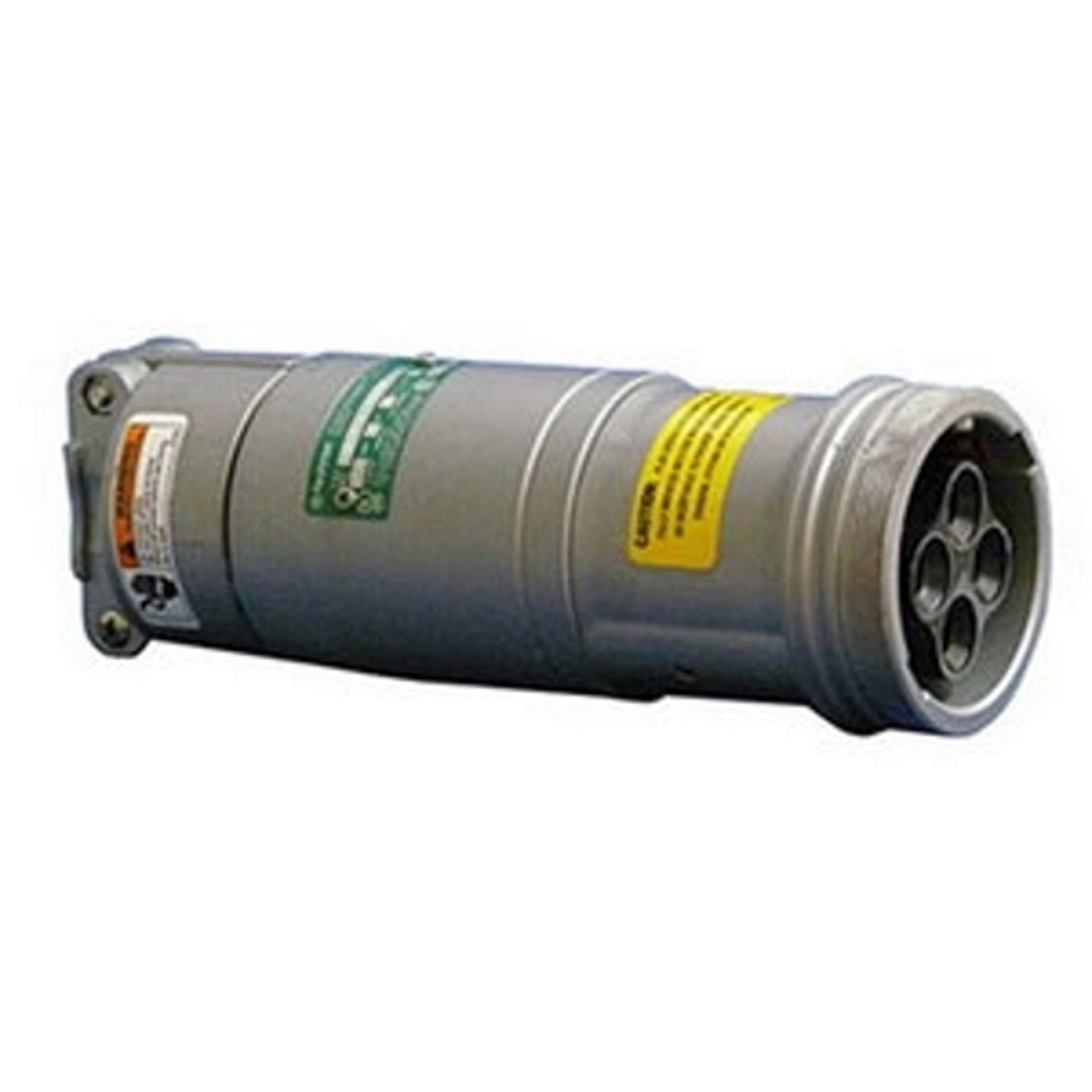

Appleton ARC1034CD Powertite Series Pin and Sleeve Connector Body 100 A

Product Description

The APPLETON ARC1034CD Powertite Series Pin and Sleeve Connector Body is designed to supply power to portable or fixed electrical equipment. It features insulating blocks that provide dielectric and mechanical strength and low arc tracking. It is ideal for use on shipping docks, ports and other ship to shore applications.

• Shell and extra pole grounding style 2
• Natural finish glass filled polyester insulating blocks
• Neoprene bushing compressed by cable collar prevents entrance of water

Product Highlights

This Powertite series connector body has controlled length contacts ensure that ground makes first and breaks last for added safety. Contacts exert constant pressure along entire contact surface and provide electrical continuity.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ARC1034CD
• Country of Origin: MX

Technical Specifications

• Series: ARC
• Material: Copper Free Aluminum
• NEMA Rating: NEMA 3/3R/4/4X
• Terminal Type: Pressure Wire
• Voltage Rating: 600/250 VAC/VDC
• Amperage Rating: 100 A
• Number of Poles: 4
• Number of Wires: 3
• Frequency Rating: 50/400 Hz
• Temperature Rating: -40 to 225 deg F
• Sub Brand: Powertite
• Phase: 3
• Standard: UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
• Item Type: Grounding Style 2 Connector Body
• Wire Size: 4 - 1 AWG (Building), 4 - 2 AWG (Extra Flex)
• IGCC: 4536
• Type: Grounding Style 2 Connector Body
• Connection: Pressure Wire Terminal
• Manufacturer: APPLETON
• Special Features: Grounding style: Shell and extra pole; Designed to supply power to portable or f
• Poles: 4
• Volts AC: 600
