APPLETON Appleton AR40144 400 Amp Recept Assem 4P S1 1.25
APPLETON Appleton AR40144 400 Amp Recept Assem 4P S1 1.25

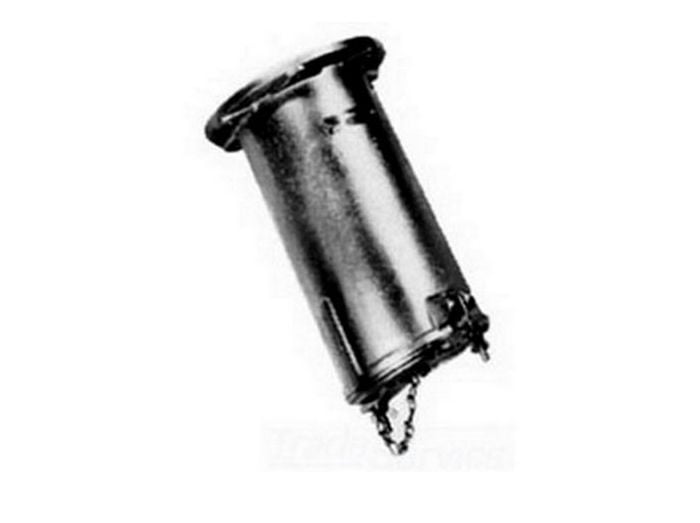

Appleton AR40144 400 Amp Recept Assem 4P S1 1.25

Brand: APPLETON
SKU: AR40144
Availability: Out Of Stock
$4,404.25
$4,404.25
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The APPLETON AR40144 Powertite grounding style 1 receptacle is designed to supply power to portable or fixed electrical equipment. This 400 amp receptacle features 4 poles and 4 wires, accommodating wire sizes from 400 to 1000 MCM. Constructed from copper-free aluminum, it is suitable for use in locations where a weatherproof enclosure is required.

  • Grounding style: Shell only
  • Ideal for use on shipping docks, ports and other ship to shore applications
  • Rough usage construction

Product Highlights

The AR40144 receptacle is ideal for motor generator units, welders, pumps, compressors, and cellular relay stations.

Product Information

Standard Information

  • Brand: APPLETON
  • Manufacturer Part Number: AR40144
  • Country of Origin: Mexico
Technical Specifications
Catalog Number
AR40144
Manufacturer
Appleton Electric
Brand
Appleton
Sub Brand
Powertite
Country of Origin
Mexico
Made in USA
No
Amperage Rating
400
Application
For AP40144F And AP40144G Plugs
Connection
Solder Wire Terminal
Material
Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Mounting
Box
Number of Poles
4
Number of Wires
4
Phase
3
Special Features
Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 1-1/4 IN
Standard
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
UPC
781381296526
GTIN
00781381296526
Item Type
Grounding Style 1 Receptacle
Temperature Rating
-40 To 107 DEG C
Voltage Rating
600 VAC At 50 - 400 HZ, 250 VDC
Wire Size
400 - 1000 MCM
Product Series
Powertite
Family Series
Appleton Plugs & Receptacles, Powertite Series
Description
Powertite Grounding Style 1 Receptacle, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 400 - 1000 MCM, Amperage Rating: 400 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree 4/10 Of 1 PCT Maximum
Connection Type
Receptacle
Connection Description
Straight
Current Rating
400 A
Voltage
600 V
Frequency
50-400 Hz
Lockout-Tagout
No
Auxiliary Contact
None
Built-In Strain Relief
No
Wire Size Range
400 MCM, 500 MCM, 600 MCM, 750 MCM, 1000 MCM
Operating Temperature
-13-104 °F
Terminal Type
Solder
Approvals
CSA, UL
