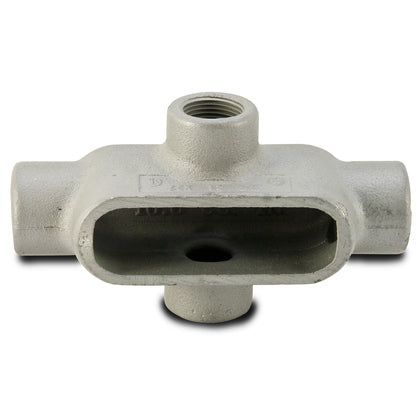

Appleton APPX17 X17 Conduit Outlet Body 1/2 in Hub 6 cu-in

Product Description

The Appleton APPX17 is a conduit outlet body designed for efficient connections in electrical conduit systems. This model features a half-inch hub and is suitable for surface mounting. It has a capacity of six cubic inches and is crafted from Grayloy iron with a triple-coated finish for durability and corrosion resistance.

• Constructed from Grayloy iron for added strength
• Features a tapered FNPT connection for secure conduit joining
• Complies with NEMA FB-1 enclosure standards, allowing for safe usage in wet locations

Product Highlights

This conduit body serves not only as a connection point but also allows for changes in the direction of conduit runs and access for maintenance and splicing purposes.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Emerson Electric

Technical Specifications

• Capacity: 6 cu-in
• Hub Size: 1/2 in
• Dimensions: 5.63 in L x 3.31 in W x 1.75 in H
• Connection Type: Tapered FNPT
• Finish: Triple Coated
• Application: For Rigid Steel/Aluminum and IMC Conduit
• Enclosure: NEMA FB-1
• Number of Hubs: 4
