Appleton APPTB47 TB47 Type TB Conduit Outlet Body 1-1/4 in Hub

Product Description

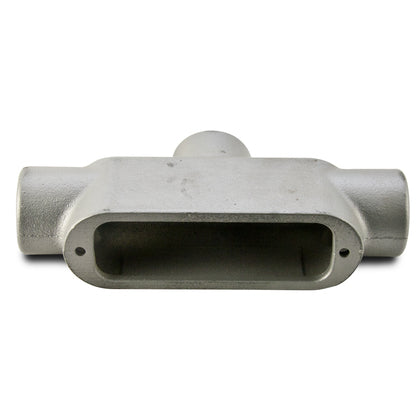

Appleton APPTB47 TB47 is a Type TB conduit outlet body designed for rigid steel, aluminum, and intermediate metal conduit. This component has a one and one-quarter inch hub with three hubs in total. It has a capacity of twenty cubic inches and adheres to Form 7 specifications. The material is Grayloy iron with a triple-coated finish, ensuring durability.

• Smooth integral bushing for conductor protection
• Accurate tapered threads for secure connections
• Approved for wet locations with Wedge-Lok covers

Product Highlights

This conduit body allows for changes in direction and provides access for splicing conductors. It is suitable for surface mounting and is designed to fit flush against flat surfaces, ensuring a stable installation.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Emerson Electric

Technical Specifications

• Hub Size: 1-1/4 in
• Capacity: 20 cu-in
• Dimensions: 7.44 in L x 2.19 in W x 3.31 in H
• Material: Grayloy Iron
• Finish: Triple Coated
• Connection Type: Tapered FNPT
• Enclosure: NEMA FB-1
• Number of Hubs: 3
