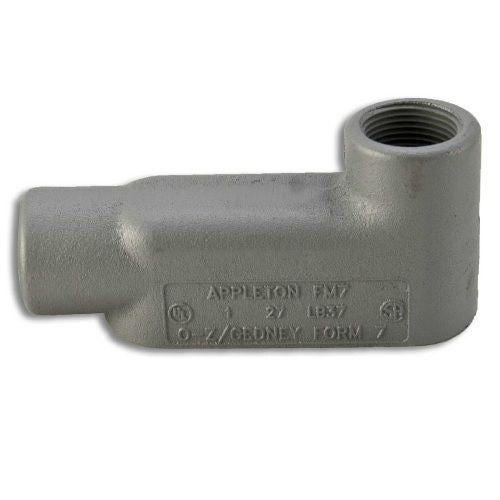

Appleton APPLB77 UNILETS Type LB Conduit Outlet Body 2-1/2 in Hub REPLACEMENT MPN

Product Description

The APPLETON APPLB77 UNILETS Type LB Conduit Outlet Body provides ample space for cable pulling and wiring connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity. It is designed for rigid/IMC conduit applications.

• Serves as pulling fittings and makes bends in conduit systems.
• Provides openings for splicing and allows connections for branch runs.
• Features a flat back design for greater cubic content and easier wire pulling.

Product Highlights

This conduit outlet body features smooth, rounded integral bushings, stainless steel screws, and a triple coat finish for enhanced durability and performance.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: APPLB77

Technical Specifications

• Hub Size: 2-1/2 in
• Material: Grayloy Iron
• Number of Hubs: 2
• Type: Type LB
• Application: For Rigid/IMC Conduit
• Standard & Approvals: UL 514A, 514B, E2527 Listed, CSA C22.2 NO 18.3 Certified, 065183 Certified, RoHS Compliant
• Capacity: 102 cu-in
• Connection Type: Tapered FNPT
• Enclosure: NEMA FB-1
• Finish: Triple Coat
• Form: 7
