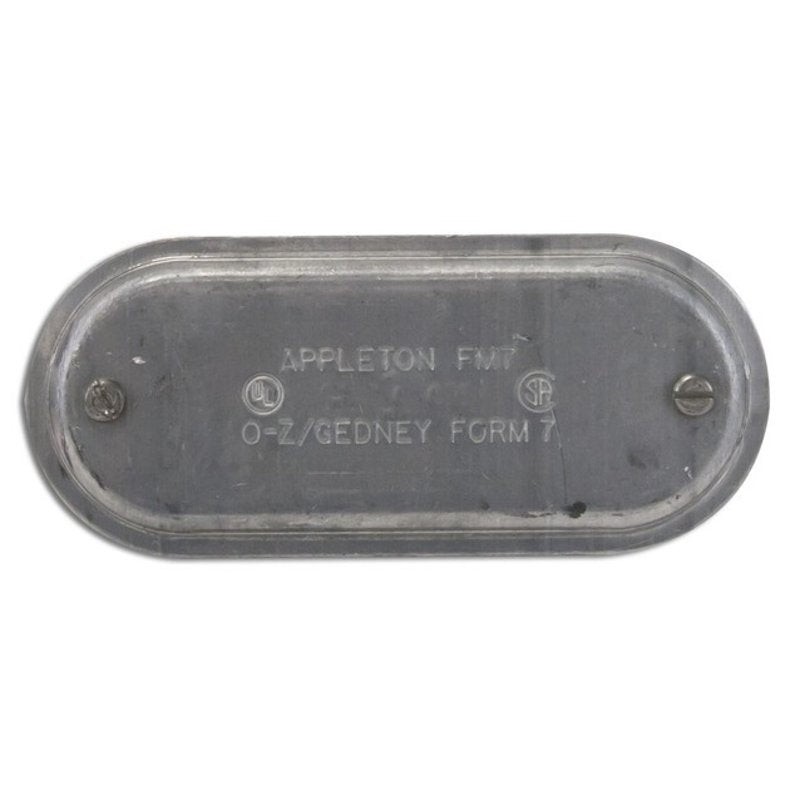

Appleton APP470SA Conduit Body Cover, Form 7, Size: 1-1/4 inches

Product Description

The APPLETON APP470SA is a conduit body cover designed for use with Form 7 UNILETS conduit outlet bodies. Constructed from aluminum, this cover is suitable for connecting and changing the direction of conduit runs, facilitating branch connections, and providing access to conductors for splicing and maintenance. It features a Wedge-Lok clip design for easy removal.

• Smooth, rounded integral bushings protect conductor insulation.
• Accurately tapped, tapered threads ensure tight, rigid joints and excellent ground continuity.
• Wedge-Lok clip cover design allows easy removal without damaging the conduit body.

Product Highlights

The APPLETON APP470SA conduit body cover is made of aluminum and features a Wedge-Lok clip design for easy removal and secure attachment. It is suitable for use in wet locations.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: APP470SA
• Country of Origin: US

Technical Specifications

• Diameter: 1 1/4 in
• Family / Style: Form 7
• Material: Aluminum
• Component: Cover
• Hub Size: 1-1/4 in
• Suitable For Use With: Form 7™ UNILETS™ Conduit Outlet Body
• Type: Wedge, FM7
• Finish: Natural
• Manufacturer Name: Emerson Electric
• Application: For FM7 Unilet Conduit Outlet Bodies
• Made in USA: Yes
• Mounting: Screw
• Special Features: Unique Wedge-Lok clip cover design allows easy removal without damaging the conduit body; Approved for use in wet locations; The cover is secured with clips, not screws; Stainless steel screws; Wiring capacity: 2 CU-IN as per NEC 314.16(A)
• Standard: UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
