Appleton APP170IGSA Alum Cov W/Fip Gkt 1/2 IN

Product Description

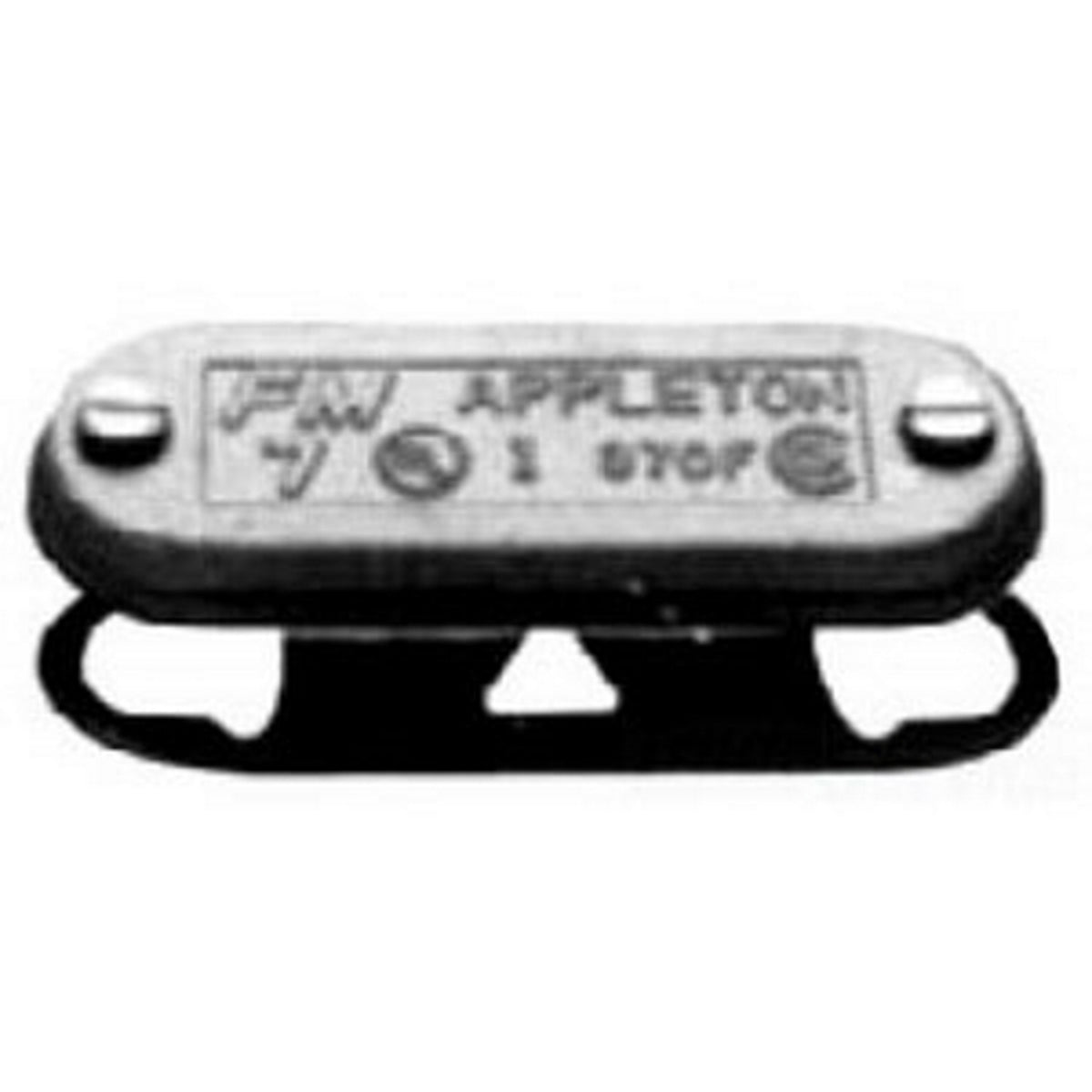

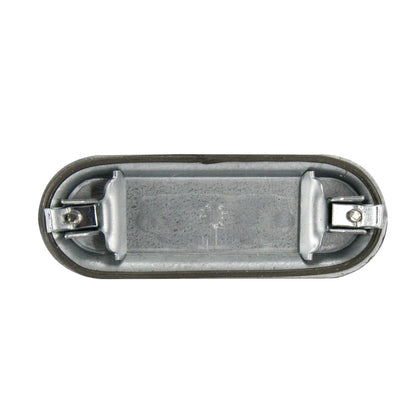

The APPLETON APP170IGSA Alum Cov W/Fip Gkt is a Form-IN-Place clip cover with an integral gasket designed for FM7 Unilet conduit outlet bodies. Constructed from stamped aluminum with a natural aluminum finish, this cover is NEMA 3R rated and suitable for wet locations. It features captive pan-head screws and Wedge-Lok clips for secure seating.

• Approved for use in wet locations.
• High-strength, corrosion and weather resistant.
• Wiring capacity: 0.3 CU-IN as per NEC 314.16(A).

Product Highlights

This aluminum cover provides superior sealing and faster installation times, reducing inventory parts. It is UL and CSA approved.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: APP170IGSA
• Country of Origin: United States

Technical Specifications

• Catalog Number: APP170IGSA
• Manufacturer: Appleton Electric
• Brand: Appleton
• Sub Brand: UNILETS
• Country of Origin: United States
• Made in USA: Yes
• Application: Wet Location
• Enclosure: NEMA 3R
• Finish: Natural Aluminum
• Form: 7
• Hub Size: 1/2 IN
• Material: Stamped Aluminum
• Mounting: Screw
• Special Features: Form-IN-Place covers with integral gasket are approved for use in wet locations; Can be used as replacement covers for installed bodies or in new installations; Benefit from superior sealing, reduced inventory parts and faster installation times; Captive pan-head screws; Wedge-Lok clips (FM7 only) provide superior screwdriver torque and cover seating; High-strength, corrosion and weather resistant; Wiring capacity: 0.3 CU-IN as per NEC 314.16(A)
• Standard: UL File Number E2527, CSA 65183, Class 4413-02, Class I, Division 2, NEMA FB-1
• UPC: 781381167581
• GTIN: 00781381167581
• Item Type: Form-IN-Place Clip Cover With Integral Gasket
• Type: Form-In-Place
• Form Type: Form 7
• Approval: UL, CSA
• Constructional Feature: Corrosion Resistant, Weather Resistant
• MPN: APP170IGSA
• Length: 3.700
• Width: 1.400
• Depth: 1.400
