Product Description

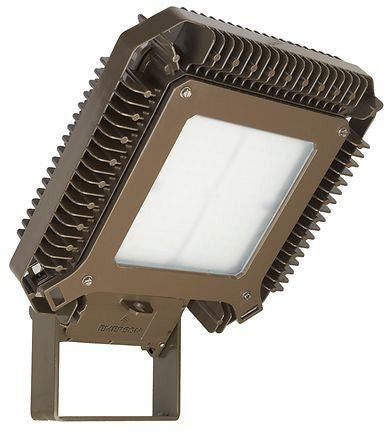

The Appleton AMLHL1CG7BU Amled Hl 24Klm Cw Clr 7X6 Bu is an effective solution for hazardous area lighting. This fixture is from Appleton Electric and has an MPN of AMLHL1CG7BU.
- LED Lamp Type with an output of twenty-four thousand lumens.
- Utilizes a yoke bracket for mounting.
- Complies with NEC, CEC, and ATEX standards.
Product Highlights
This floodlight fixture provides safety and efficiency for industrial environments.
Product Information
Standard Information
-
Manufacturer: Appleton Electric
-
Brand: Appleton
Technical Specifications
-
Type: Hazardous
-
Voltage Rating: 120-277Vac 50/60Hz, 170-300Vdc
-
Wattage: 180 W
-
Lumens: 24k lm
-
Color: Bronze
-
Size: 18.67x15.94x5.13 IN
-
Average Life: 60000 HR
-
Mounting: Yoke
-
Special Features: Enclosed and Gasketed
-
Full Technical Description: 15.94 Inch Width X 5.13 Inch Depth Size; Architectural Bronze Polyester Finish; UL 844/1598/1598A/8750, ETL (Canada and US), CSA (Canada and US), CSA C22.2, CE Approval; Yoke Bracket Mounting; Class I Div 2 Group A B C D, Class II Div 1 and 2 Group E F G.
