Appleton AMC-75 Box Connector 3/4 inches Replacement MPN

Product Description

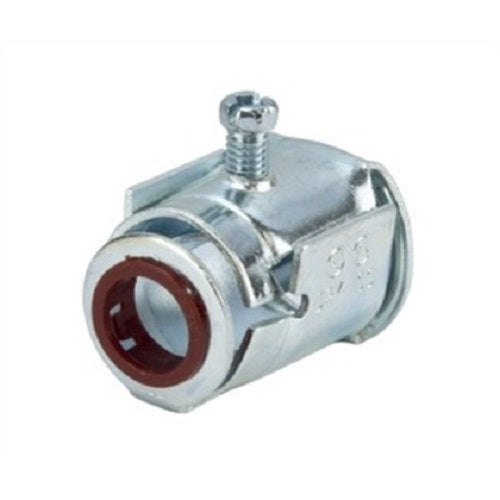

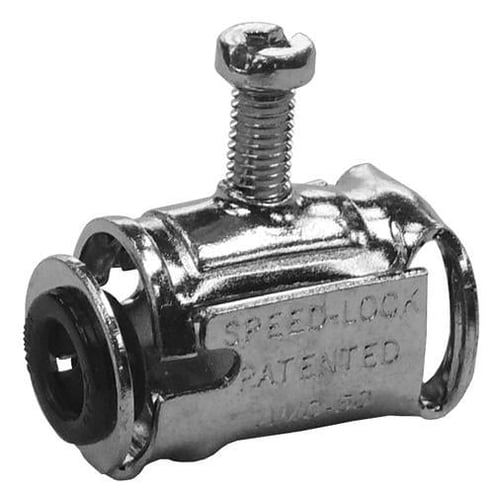

The APPLETON AMC-75 box connector is designed to ground and secure MC, AC, and flexible metal conduit to a box or enclosure. It features a snap-in, single-screw clamp connection. Constructed from steel with a zinc finish, this connector is suitable for dry locations.

• 1 5/8IN Length X 1 5/16IN Width X 0.98IN Height
• For MC, AC And Flex Cable
• Standard:UL 514B, CSA C22.2, Fed Spec W-F-406E

Product Highlights

The APPLETON AMC-75 box connector ensures secure connections for various conduit types in dry environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: AMC-75
• Country of Origin: CN

Technical Specifications

• Material: Steel
• Angle: Straight
• Applications: To ground and secure MC, AC and flexible metal conduit to box or enclosure
• Connection Type: Snap In,Single Screw Clamp
• Connector Type: Single Screw Clamp
• Size: 0.75 IN
• TC Connection: Snap In
• Trade Size: 3/4 Inch
• Type: Insulated Throat Box Connector
• Brand: Appleton
• Sub Brand: ETP
• 12-Digit UPC: 687855078356
• Color: Metallic
• Environmental Conditions: Dry Location
• Finish: Zinc
• GTiN: 00687855078356
• Product UPC: 68785507835
• Application: To ground and secure MC, AC and flexible metal conduit to box or enclosure
• Brand Name: Appleton
• Connection: Snap In
• Country of Origin: CN
• Diameter: 1.31
• Insulation: Insulated Throat
• Special Features: Connects over 100 sizes of MC, AC or flexible metal conduit with just four fittings Easy to install, just tilt, insert and snap down Integral red plastic insulated throat busing provides maximum protection for wire insulation No locknut required Single unit construction eliminates loose component parts Single unit or duplex construction with captive clamp
• Standard: UL Standard: 514B; UL Listed: E11852, CSA Standard: C22.2 No. 18.3; CSA Certified: 028507
• Sub_Brand: Appleton
