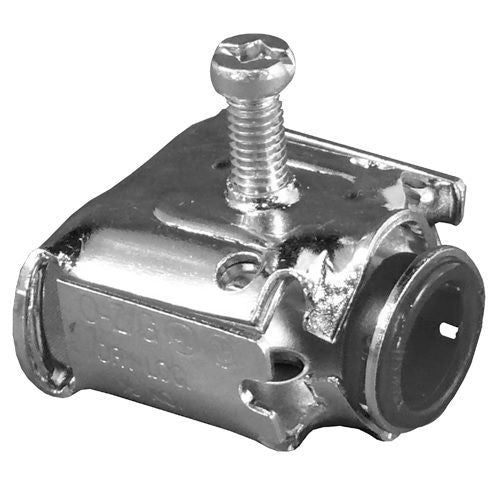

Appleton AMC-52 1/2 inches Duplex AC/MC/FMC Speed-Lock Steel Box Connector

Product Description

The APPLETON AMC-52 is a 1/2" duplex AC/MC/FMC Speed-Lock steel box connector. It is constructed of steel with a zinc plated finish. This connector is suitable for MC, AC, and flex cable applications. It measures 1 9/16IN in length, 1 23/32IN in width, and 0.69IN in height.

• Constructed of steel with a zinc plated finish
• Suitable for MC, AC, and flex cable
• Measures 1 9/16IN x 1 23/32IN x 0.69IN

Product Highlights

The APPLETON AMC-52 provides a secure and reliable connection for various cable types in steel box installations.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: AMC-52

Technical Specifications

• Material: Steel
• Finish: Zinc Plated
• Size: 0.50IN
• Length: 1 9/16IN
• Width: 1 23/32IN
• Height: 0.69IN
• Standards: UL 514B, CSA C22.2, Fed Spec W-F-406E
• Cable Type: MC, AC And Flex Cable
• Angle: Straight
• Applications: To ground and secure MC, AC and flexible metal conduit to box or enclosure
• Connector Type: Single Screw Clamp
• Tc Connection: Snap In
• Trade Size: 1/2 Inch
• Type: Duplex Insulated Throat Box Connector
• Brand: Appleton
• Sub Brand: ETP
• Product UPC: 68785507834
• Color: Metallic
• Standard & Approvals: RoHS Compliant, CSA 028507, C22.2 No.18.3, UL 514B, E11852
• Application: For steel box installations
• Suitable For Use With: MC/AC/FMC to Box/Enclosure
• Diameter: 1.72 in
• Manufacturer Part Number: AMC52
• Manufacturer: Appleton
• Product Series: Speed-Lock
• Family Series: Appleton Fittings, Speed-Lock Series
• Description: 1/2 IN STEEL DUPLEX BOX CONN
• Conduit/Cable Type: FMC (Flexible Metallic Conduit)
• Connection Type: Snap-In
• Hub Type: Snap-In
• Grounding: No
• Insulated Throat: No
• Jacketed: No
• Composition: Metallic
• Hazardous Location: No
• Approvals: CSA, UL
