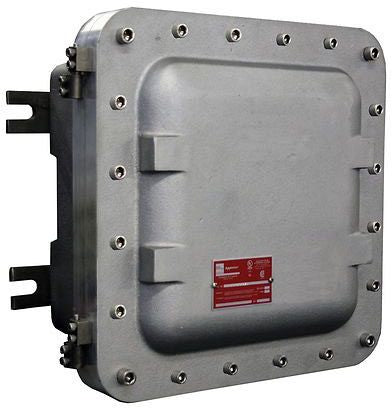

Appleton AJBEW242410 Junction Box Explosion-Proof 4 Inch Hub Size

Product Description

The Appleton AJBEW242410 is an explosion-proof junction box designed for hazardous environments. It features a hub size of four inches and overall dimensions of twenty-nine point thirty-eight inches in length and width, with a depth of fourteen point thirty-one inches. The inner dimensions are twenty-four point five inches in length and width, and nine point seventy-five inches in depth.

• Suitable for Class I and II hazardous locations.
• Constructed from sand-cast copper-free aluminum.
• Includes stainless steel cover bolts and neoprene O-rings.

Product Highlights

This junction box is ideal for terminal connections, splicing wires, and as a pull or bus box. Its weatherproof design meets NEMA ratings for various environmental conditions.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Catalog Number: AJBEW242410

Technical Specifications

• Hub Size: 4 inches
• Overall Dimensions: 29.38 inches L x 29.38 inches W x 14.31 inches D
• Inner Dimensions: 24.5 inches L x 24.5 inches W x 9.75 inches D
• Material: Sand cast copper-free aluminum
• Cover Type: Bolt-on, Hinged
• Enclosure Rating: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III
• NEMA Rating: NEMA 4/9 EFG
• IP Rating: IP66
