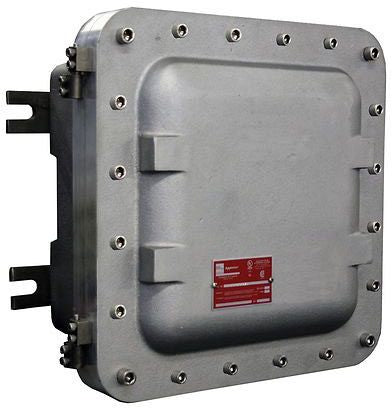

Appleton AJBEW121208 Explosion-Proof Junction Box 17.38 Inch x 17.38 Inch x 11.5 Inch

Product Description

The Appleton AJBEW121208 is an explosion-proof junction box designed for use in hazardous locations. Its overall dimensions are seventeen point thirty-eight inches in length, seventeen point thirty-eight inches in width, and eleven point five inches in depth. It features a three-inch hub size. The housing is crafted from sand cast copper-free aluminum with a shot blast finish, suitable for both vertical and horizontal mounting.

• Suitable for hazardous locations
• UL and CSA approved
• Includes stainless steel cover bolts and neoprene O-ring

Product Highlights

Designed for use in applications such as terminal splices, pull boxes, and bus boxes, the AJBEW121208 junction box ensures safety and reliability in environments requiring explosion-proof solutions.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Catalog Number: AJBEW121208

Technical Specifications

• Overall Size: 17.38 inches L x 17.38 inches W x 11.5 inches D
• Inner Size: 12.25 inches L x 12.25 inches W x 7.75 inches D
• Hub Size: 3 inches
• Material: Sand cast copper-free aluminum
• Mounting: Vertical/Horizontal with slotted feet
• Approval: UL 886, CSA C22.2
• IP Rating: IP66
• NEMA Rating: NEMA 4/9E/F/G
