Appleton AJA20023200RS Receptacle Box Assembly 200A

Product Description

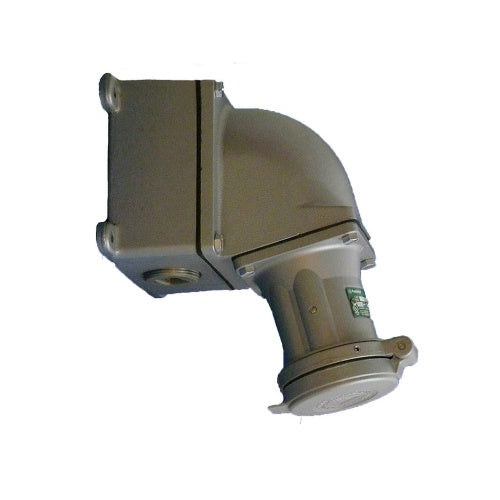

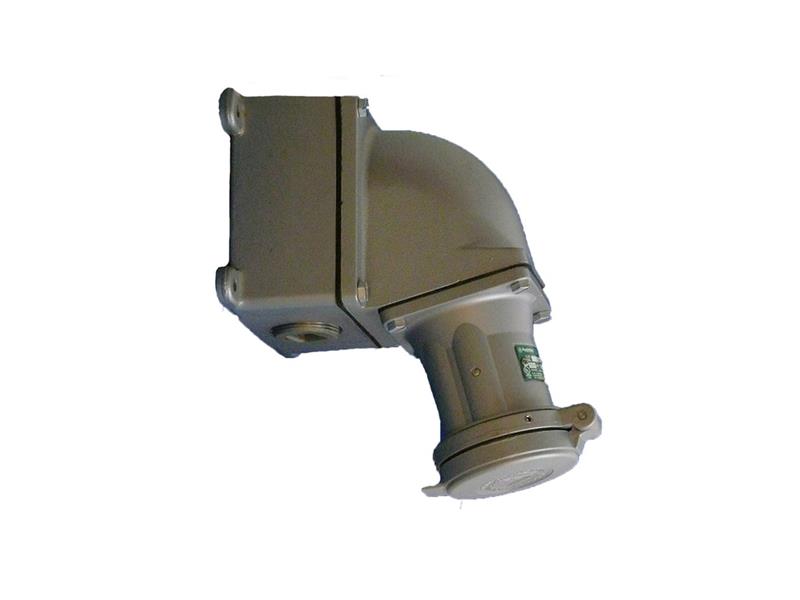

The APPLETON AJA20023200RS is a pin and sleeve receptacle box assembly from the Powertite Series. This angled, reverse service receptacle is weatherproof and raintight. It has a voltage rating of 600 VAC at 50 to 400 Hz and 250 VDC, with a current rating of 200 Ampere. Designed with 3 poles and 2 wires, it features grounding style 2.

• Weatherproof and raintight construction
• Voltage Rating 600 VAC at 50 to 400 Hz, 250 VDC
• Suitable for compressor, motor generator unit, pump, shipping docks, shipping ports and welding applications

Product Highlights

The Appleton Powertite receptacle is ideal for various industrial applications requiring a robust and reliable power connection.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: AJA20023200RS

Technical Specifications

• Manufacturer Part Number: AJA20023200RS
• Manufacturer: Appleton
• Product Series: Powertite
• Family Series: Appleton Plugs & Receptacles, Powertite Series
• Description: Pin and Sleeve Receptacle Box Assembly, Type Reverse Service, Angled, Constructional Feature Weatherproof, Raintight, Voltage Rating 600 VAC at 50 to 400 Hz, 250 VDC, Current Rating 200 Ampere, Number of Poles 3, Number of Wires 2, Grounding Style 2,
• Connection Type: Receptacle
• Connection Description: Angled
• Current Rating: 200 A
• Voltage: 600 V
• Frequency: 50-400 Hz
• Number of Poles: 3
• Number of Wires: 2
• Lockout-Tagout: No
• Auxiliary Contact: None
• Built-In Strain Relief: No
• Wire Size Range: 2/0 AWG, 3/0 AWG, 4/0 AWG, 250 MCM
• Material: Metallic
• Operating Temperature: -13-104 °F
• Terminal Type: Screw
• NEMA Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
• Approvals: CSA, UL
• Comments: 2 " Hub With Reverse Service - for Generator Applications
• Net Weight: 0 lbs
• Gross Weight: 0 lbs
• Receptacle Voltage: 120/240/480/600 VAC
• Cord Diameter: 1-7/8 to 2-1/2 in
• Dimensions: 13-1/2 in H x 8 in W x 14-1/4 in D
• Hub Size: 2 in
• Temperature Rating: -40 to 225 deg F
• Type: Angled Grounding Style 2 Raintight Reverse Service Weatherproof
• Voltage Rating: 600 V AC/250 V DC
• Part No.: AJA20023200RS
• Category: Plug/Receptacle
• Weight: 4.54 kgs
